SPOT WELDER & MULTI-POINT SPOT WELDING MACHINE

SPOT WELDER & MULTI-POINT SPOT WELDING MACHINE

SPOT WELDER

* A latest developed variable stoke compressed cylinder. With adding on the design of lubricating-oil-free bearing, it suits for high speed and long period of operation. It can save you the consumption of compressed air also to speed up the reaction of welding.

* High precision digital controlled. Makes the preset and change of welding condition more easy and obtain better welding quality.

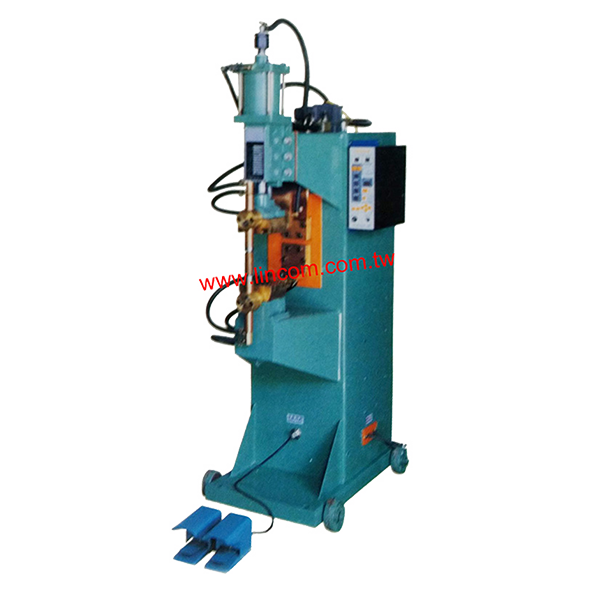

Automatic pneumatic spot welder, digital controlled for high precision.

Automatic Pneumatic Spot Welding Machine

Y type double head spot welder.

Double Head Spot Welder, Y-Type

Specifications:
Model Rated Capacity Rated primary Voltage Rated frequency Highest short circuit current Permissible duty Maximum pressure Rated Input Throat dimension Refrigerate current Applicable Thickness
KAV V HZ A % kg KVA mm I mm
Single-point KSA-300 30 220/380 50/60 13000 9.7 500 68 200x450 6 1.6x1.6
KSA-400 40 220/380 50/60 15000 13.1 500 78 200x450 6 1.8x1.8
KSA-500 50 220/380 50/60 19000 9.3 800 116 200x450 8 2.0x2.0
KSA-600 60 220/380 50/60 21000 10.3 800 132 200x450 8 2.2x2.2
KSA-800 80 220/380 50/60 22500 10.3 800 176 200x450 8 2.8x2.8
Multi-point KSA-500C 50 220/380 50/60 22000 7 800 134 200x300 8 2.5x2.5
KSA-600C 60 220/380 50/60 24000 8 800 150 200x300 8 3x3
KSA-800C 80 220/380 50/60 28000 8.7 800 192 200x300 8 3.5x3.5
KSA-1000C 100 220/380 50/60 34000 8 1000 249 200x300 10 3.5x4
KSA-1200C 120 220/380 50/60 38000 8.1 1000 298 200x300 10 4x4
KSA-1500C 150 220/380 50/60 40000 9.8 1200 338 200x300 12 4x4.5
KSA-2000C 200 220/380 50/60 48000 8.5 1500 484 200x300 12 4x5
※Remarks: 1.Right of modification reserved.
2.Customers specific requirement are Welcome!
MULTI-POINT SPOT WELDING MACHINE

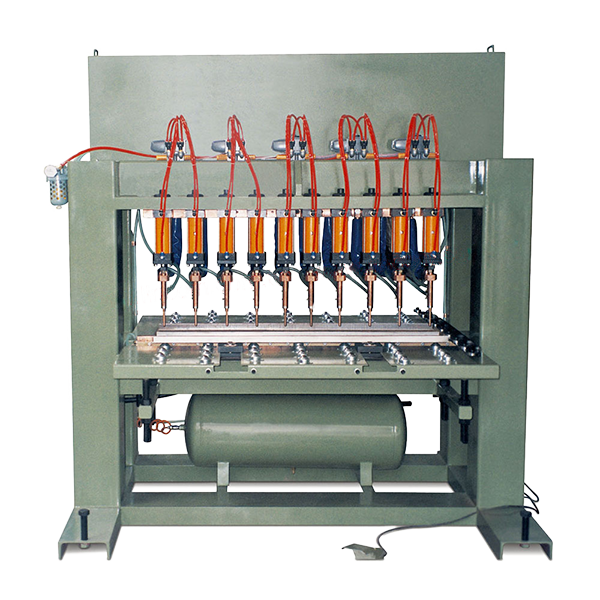

Multi spot welder for shelf panel.

Multi-Spot Welder For Shelve Panel

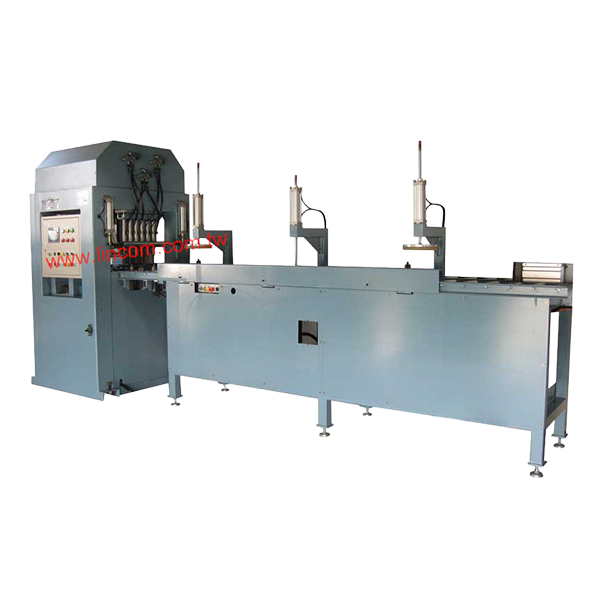

Multi spot welder for radiator panel.

Multi-Spot Welder For Radiator Panel

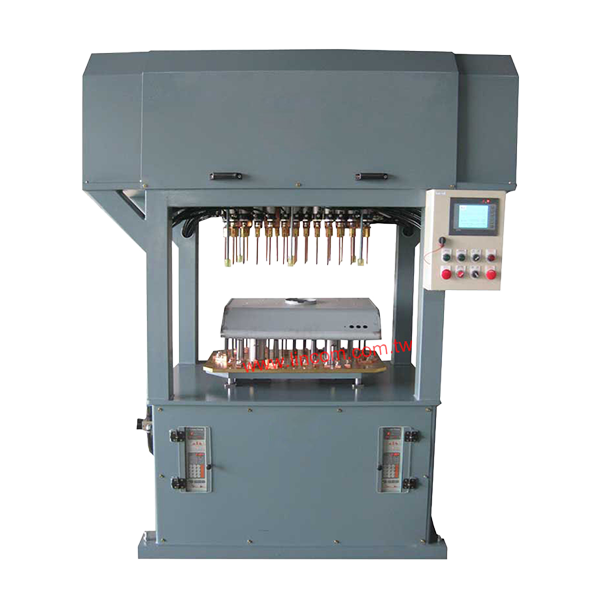

Multi spot welder for kitchen exhaust case.

Multi Spot Welder for Kitchen Exhaust Case

SWIVEL ARM SPORT WELDER

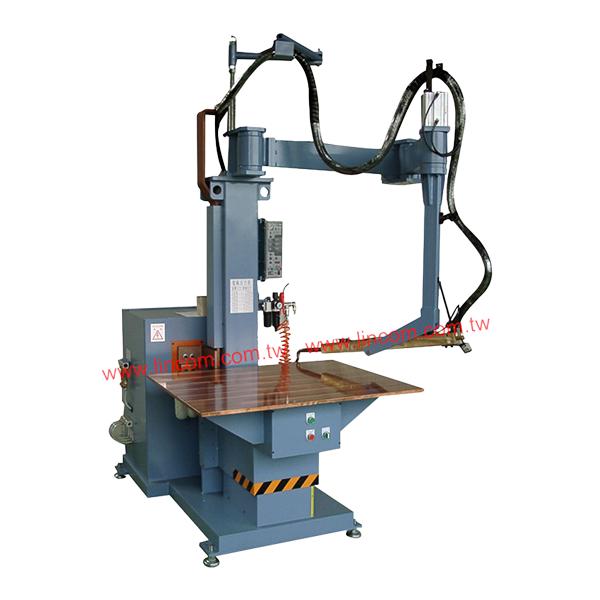

Swivel arm sport welder-ND1500.

Swivel Arm Sport Welder Nd1500

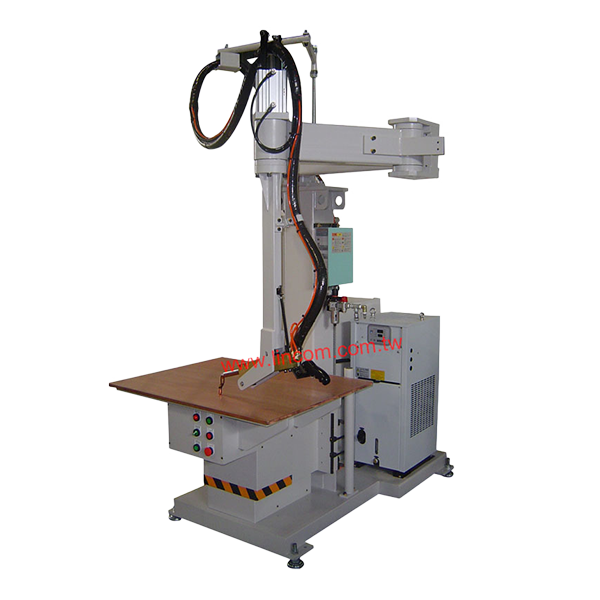

Swivel arm sport welder-ND1000.

Swivel Arm Sport Welder Nd1000

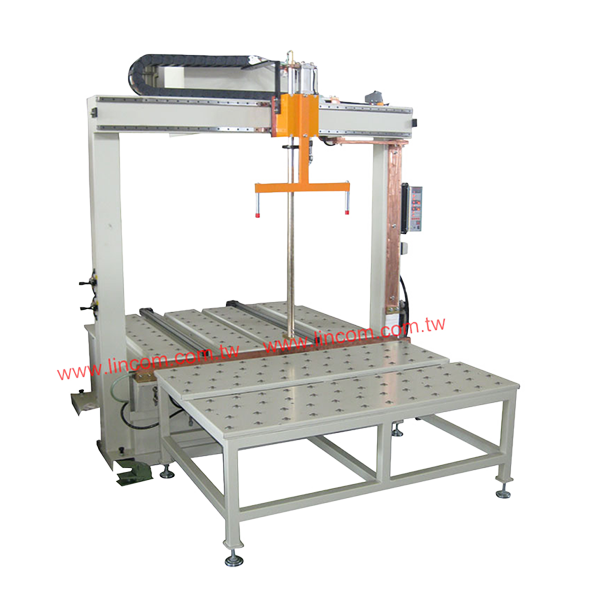

XY axis movement spot welder.

X, Y Movement Spot Welder

DUAL LAYER INTERCHANGEABLE TYPE

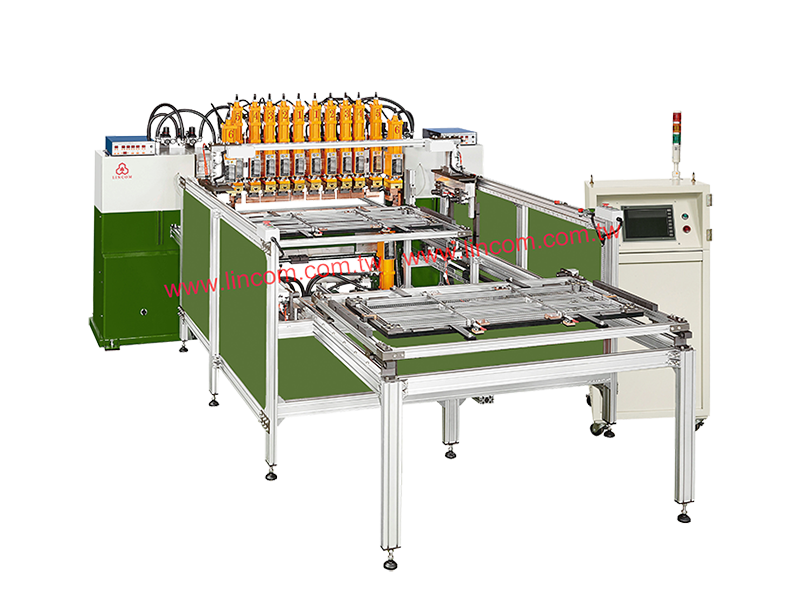

Dual layer interchangeable type welding machine for wire cable tray, storage, warehouse, carts, cages, etc.

For Wire Cable Tray, Storage, Warehouse, Carts, Cages...

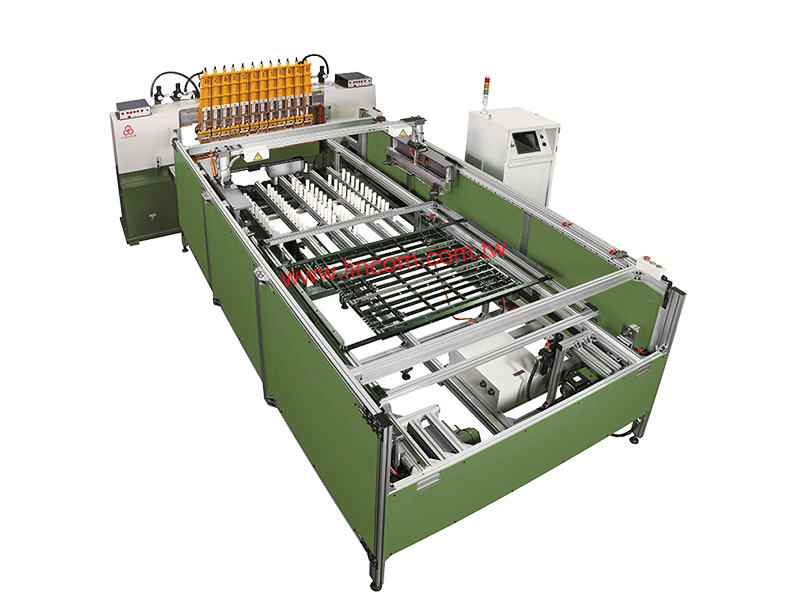

Dual layer interchangeable type multi head spot welder for shelf, mesh, etc.

Multi-Spot Welder For Shelve, Mesh.. Dual-Layer Interchange 002 Type

※Remark: We can accept customer's special requirements.
