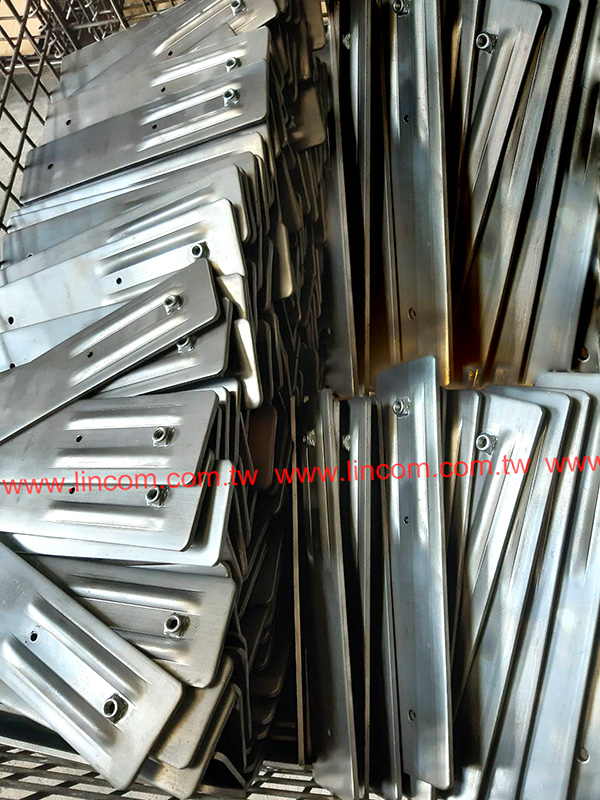

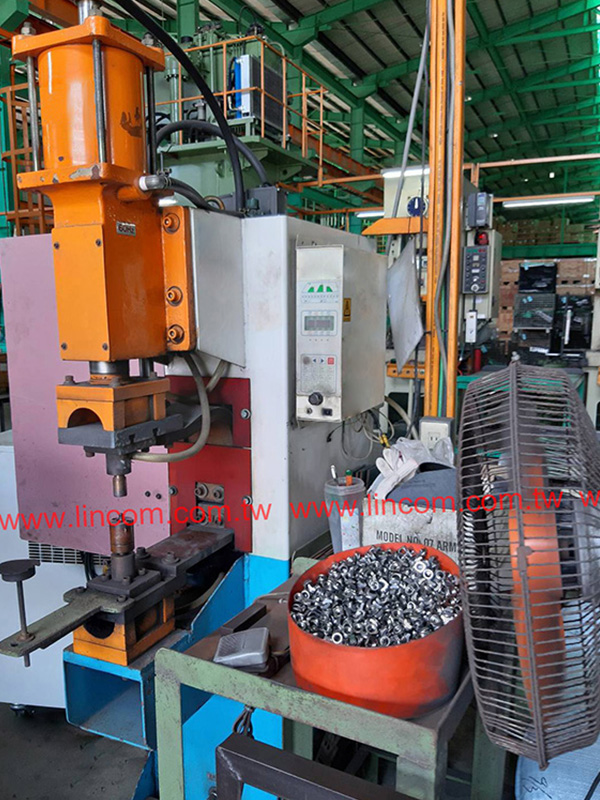

PROJECTION WELDING MACHINE
STEEL COIL END SHEARING & JOINT WELDING MACHINE
* Adopts fast cutting mechanism to join and weld steel coils.

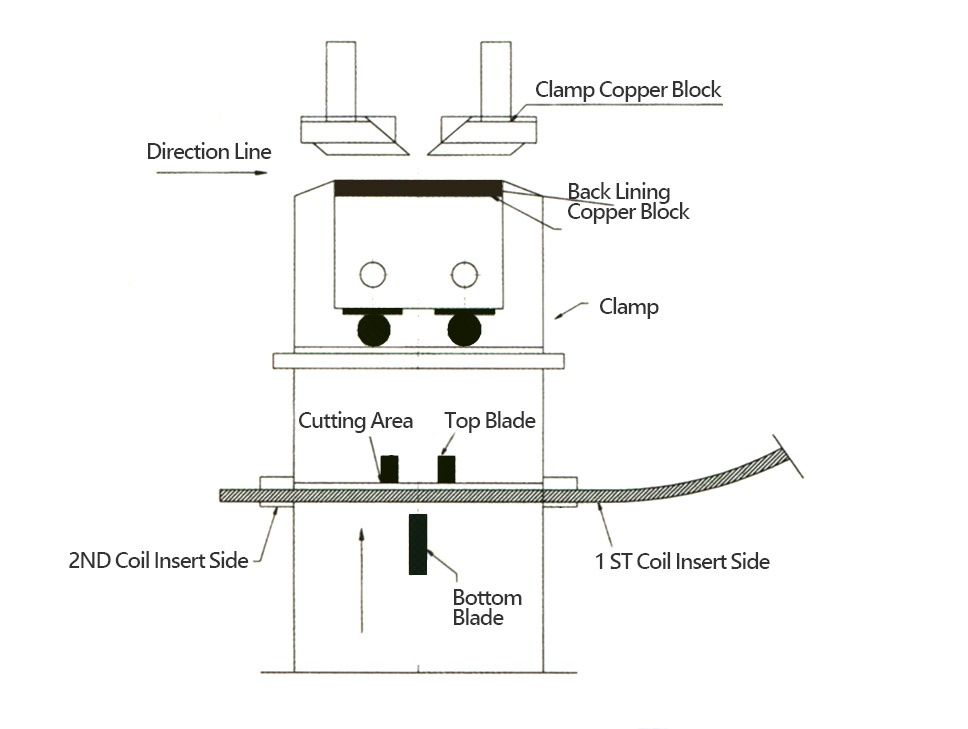

* Patented machine structure, hydraulic double blade shearing, so the steel sheet runs out in flatten shape, easy for subsequent welding.
* Manual type pneumatic/ hydraulic copper mold clutch to hold the material, with auto centering feature, fast and accurate operation.
* Adopts precise motor control, welding gun moving accurately and stably.
* Adopts frequency conversion type Argon Welding Machine, to ensure welding quality.
* Compact and lightweight machine structure, suitable for many production lines.

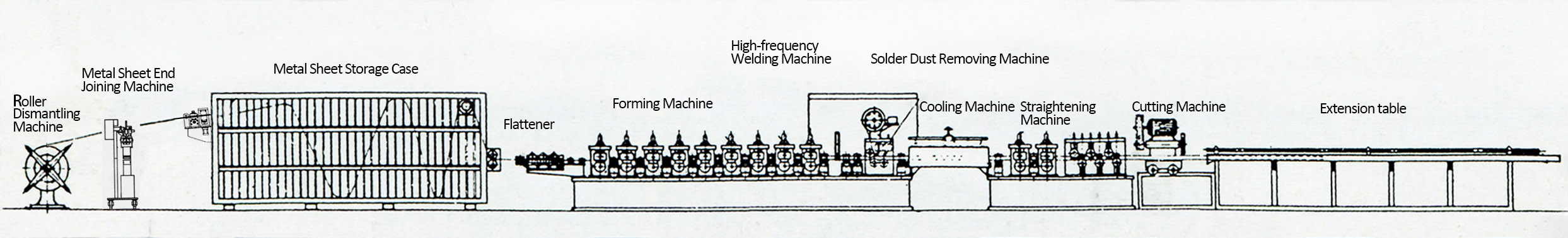

* For Mill Steel Pipes, Stainless Tubes making Line
* For Roll Forming Line
* For Continue Progress Stamping Die Production...
| MODEL | Strip width | Strip thickness(max)y | Clamping system | Shearing system |
| LSCJ-250 | 250mm | 4.5mm | Hydraulic | Hydraulic |
| 2.5mm | Pneumatic | |||
| LSCJ-320 | 320mm | 4.5mm | Hydraulic | |
| 2.5mm | Pneumatic | |||
| LSCJ-400 | 400mm | 4.5mm | Hydraulic | |
| 2.5mm | Pneumatic | |||
| LSCJ-600 | 600mm | 5.0mm | Hydraulic | |
| LSCJ-800 | 800mm | 6.0mm | Hydraulic |
| ※Remarks: | 1.Right of modification reserved. 2.Customers specific requirement are Welcome! |

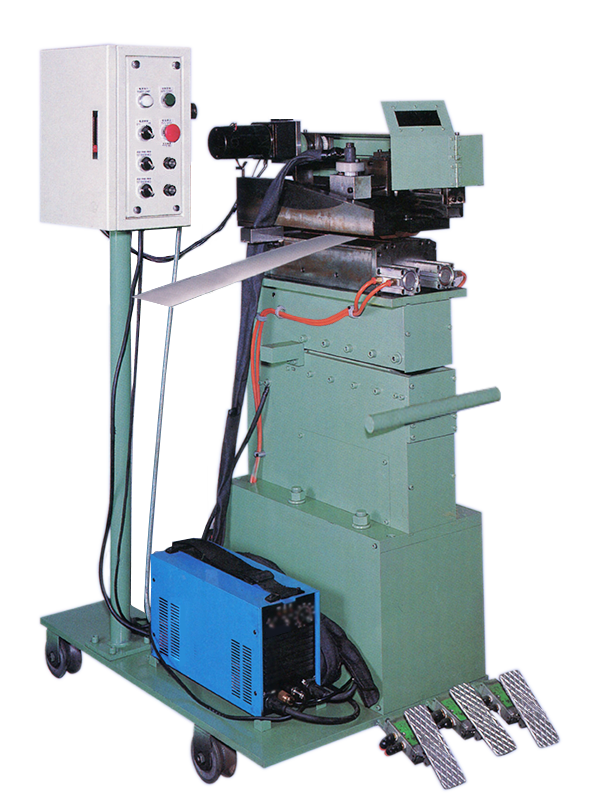

Argon Coil Joint/Welding Machine

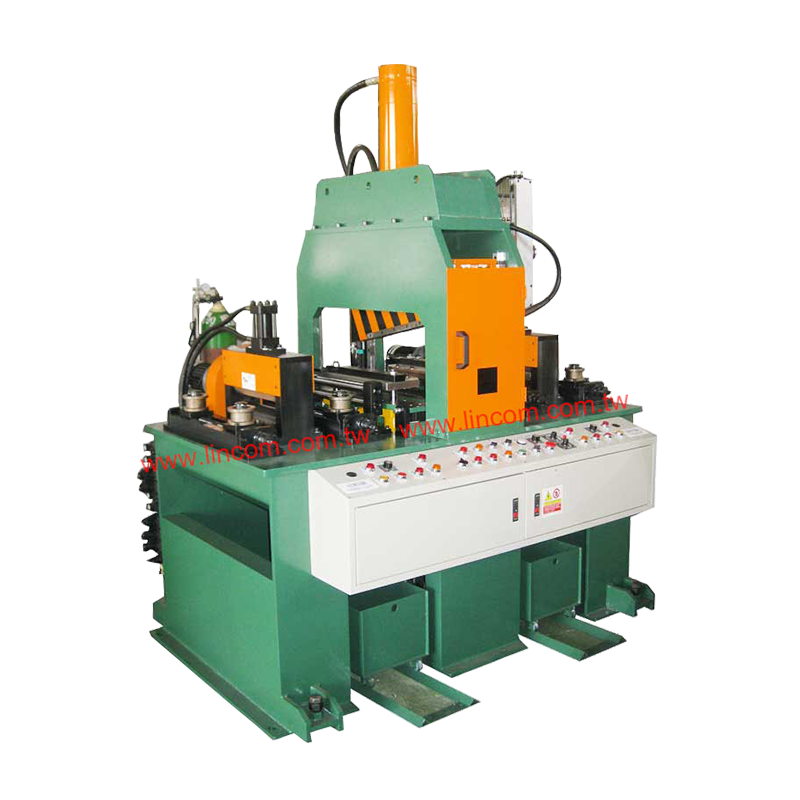

Steel Coil End Joint Welding Machine

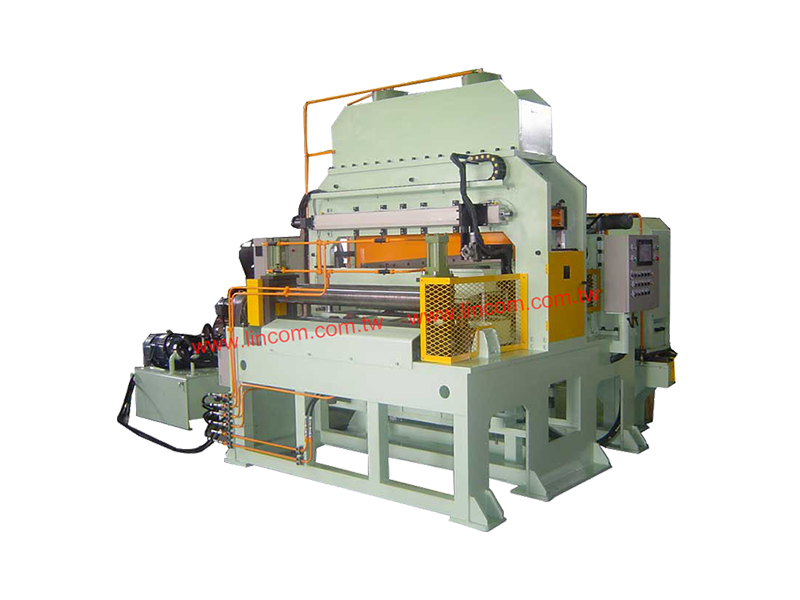

Steel Coil End Shearing & Joint Welding Machine#1200

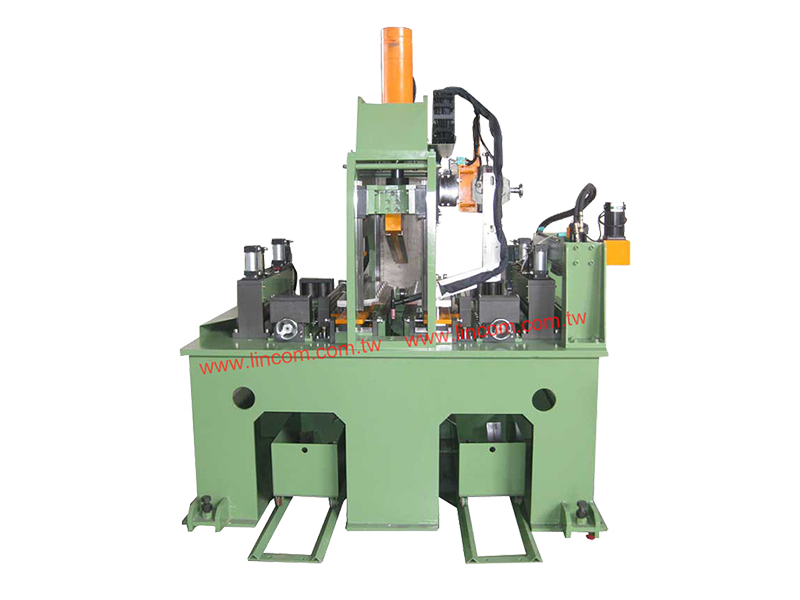

Steel Coil End Shearing & Joint Welding Machine#600

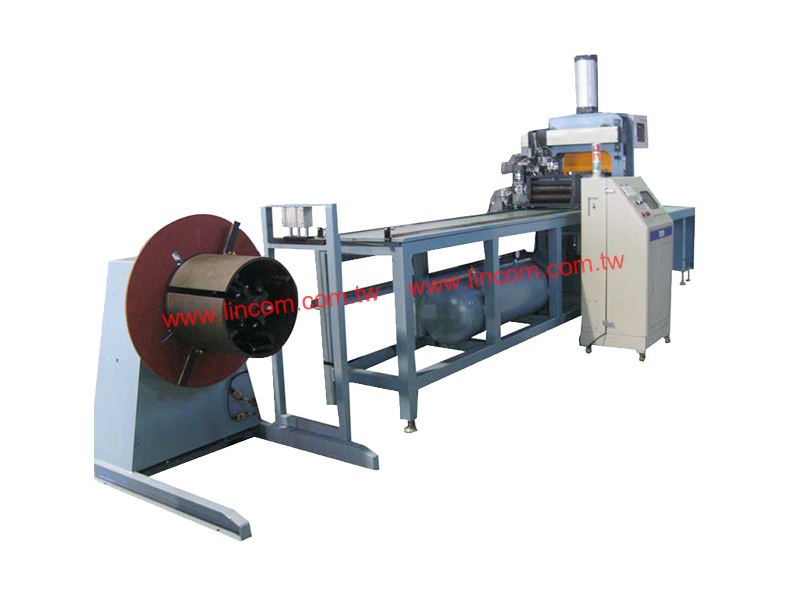

Silicone Steel Coil End Shearing & Joint Welding Machine
| ※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |
MANIPULATOR
* Applicable for Tig / Plasma / CO2 / Submerged welding.
* Vertical traveling is by motor transmission
* This machine adopts heavy duty chain for elevation, and is equipped with safety device to avoid breaking the chain.
* Horizontal arm movement is by DC motor transmission with high precision bearing and screw for stable traveling.
| Model | Vertical Column | Horizontal Arm | ||||
| Vertical Working Range | Traveling Speed | Column Rotation | Working Range | Loading Capacity | Welding Speed | |
| MPL-1000 | 1M | 1000mm/min | Manual 360˚ | 1M | 100kg | 150-1500mm |
| MPL-2000 | 2M | 1000mm/min | 2M | 120kg | ||
| MPL-3000 | 3M | 1000mm/min | 3M | 150kg | ||
| MPL-4000 | 4M | 900mm/min | 4M | 150kg | ||
| MPL-5000 | 5M | 900mm/min | Manual or 0.2 rpm | 5M | 200kg | |
| MPL-6000 | 6M | 800mm/min | 6M | 200kg | ||
| ※Remarks: | 1.Right of modification reserved. 2.Above are our standard model, for special requirements are welcome! |

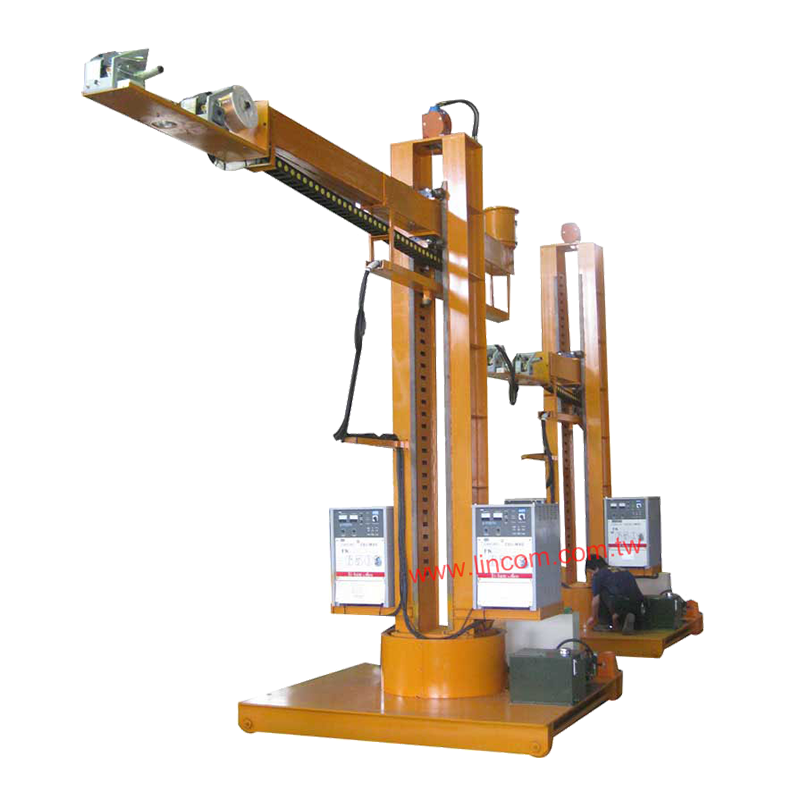

Manipulator,
Extendable Type

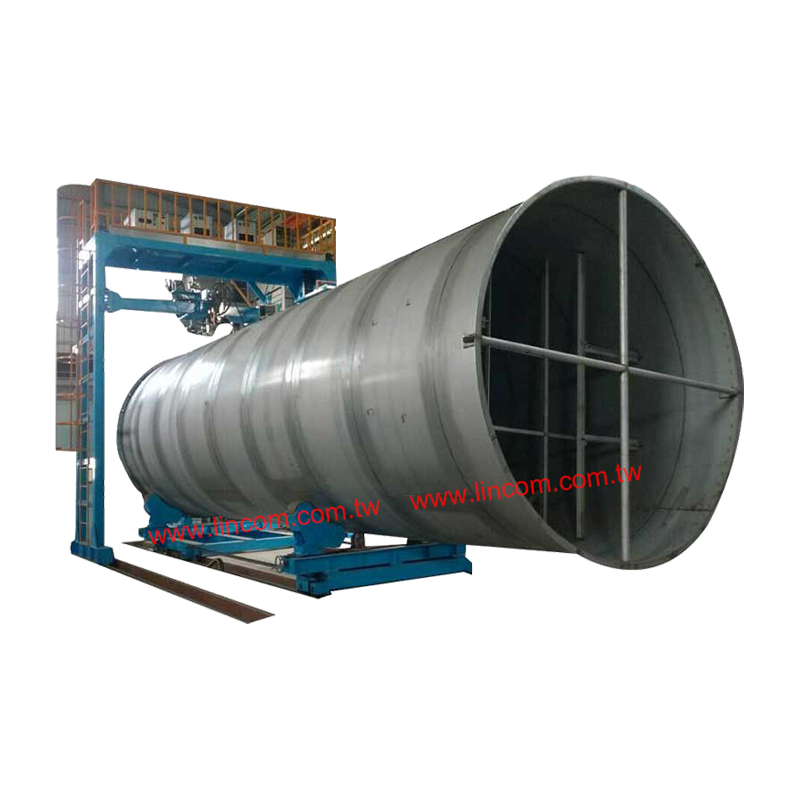

Manipulator,
Column Type

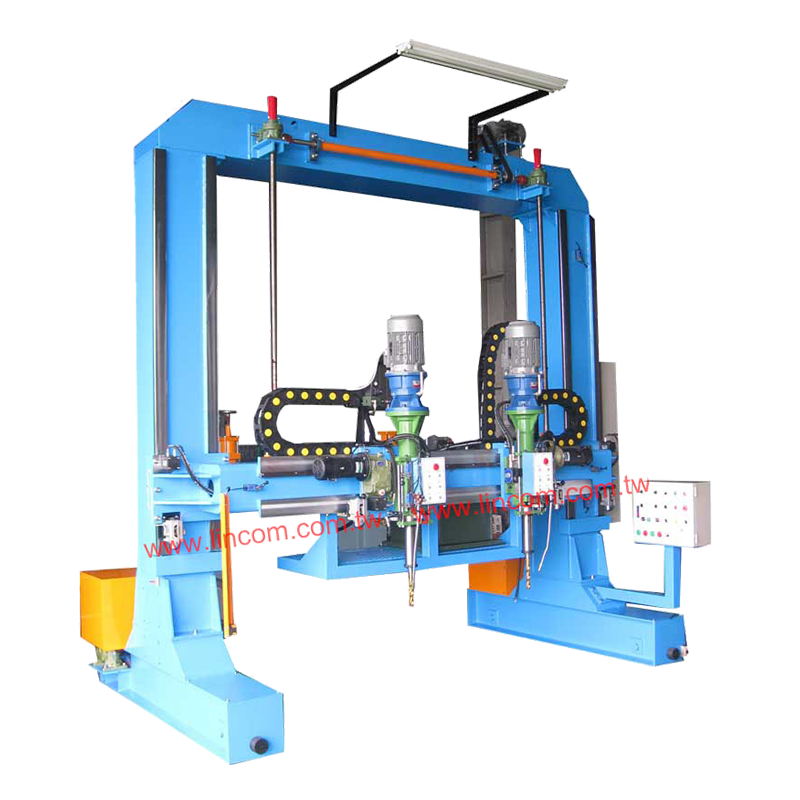

Drilling Machine,
Colum Type-01

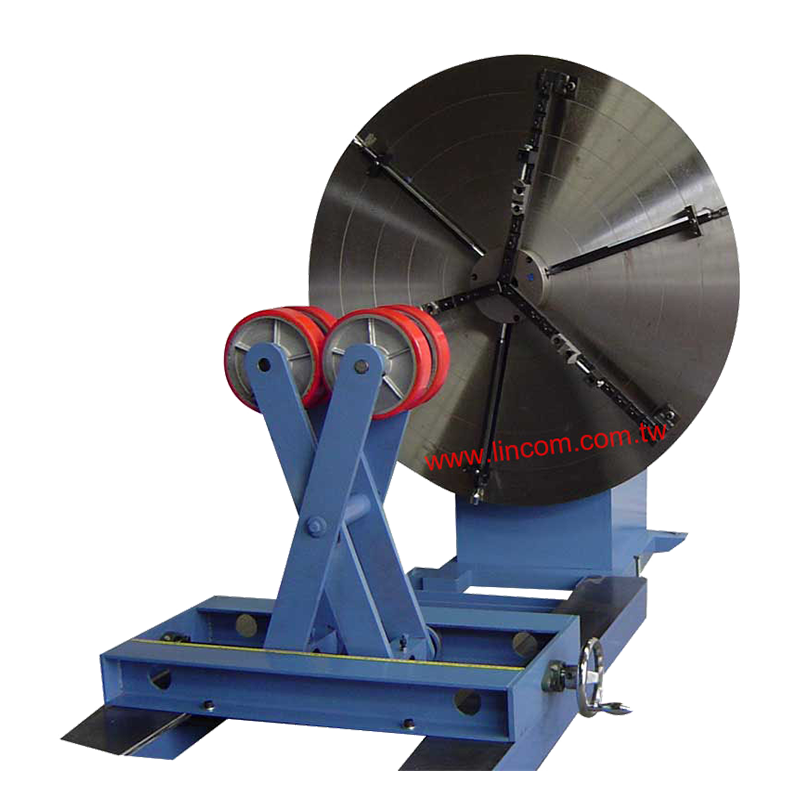

Positioner with Manipulator
WELDING SUPPORT ROLLER
* Suitable for large size tank making, circumference welding and cutting.
* For auto welding, customer can upgrade the equipment by adding cross arm to enhance welding path's quality.
* Workpiece above 10 tons, power is driven by DC motor.
* Firm structure prevents the machine body to deform from heavy-weight loading.
* Rotating Speed 100-1000 mm/min.
| Model No. | Max. Loading Weight | Workpiece Diameter | Wheel Distance Adjustment | Motor | Transmission | Driving Wheel Diameter |
| SPR-2W-3T | 3000kg | 200-2000 | By Pin Inserting | AC | Twin Wheel | 160 |
| SPR-2W-6T | 6000kg | 200-3000 | AC | 160 | ||
| SPR-2W-10T | 10000kg | 400-3000 | DC | 270 | ||
| SPR-2W-20T | 20000kg | 400-3500 | DC | 300 | ||
| SPR-2W-30T | 30000kg | 400-4000 | DC | 350 | ||
| SPR-4W-10T | 10000kg | 1000-3000 | By Automatic Positioning | DC | Four Wheel Synchronization | 250 |
| SPR-4W-30T | 30000kg | 1000-3000 | DC | 300 | ||
| SPR-4W-50T | 50000kg | 1500-4500 | DC | 350 |
| ※Remarks: | 1.Right of modification reserved. 2.Above are our standard model, for special requirements are welcome! |
LONGITUDINAL AUTO WELDER
* Easy operation by key-in welding parameters on the touch screen.
* Precise linear slide rail with ball screw stabilizes the transmission, which reduces defected workpiece and enhances welding path's quality.
* Applicable with Tig, CO2, SAW welding.
Linear Welder with Clamp
| Model | Effective rolling length | Max. diameter of workpiece | Welding thickness | Trolley |
| LLW-600 | 600mm | φ600mm | 0.4~10mm | option |
| LLW-800 | 800mm | 0.6~10mm | ||
| LLW-1000 | 1000mm | |||
| LLW-1300 | 1300mm | |||
| LLW-1600 | 1600mm | φ800mm |
| ※Remarks: | 1.Right of modification reserved. 2.Above are our standard model, for special requirements are welcome! |

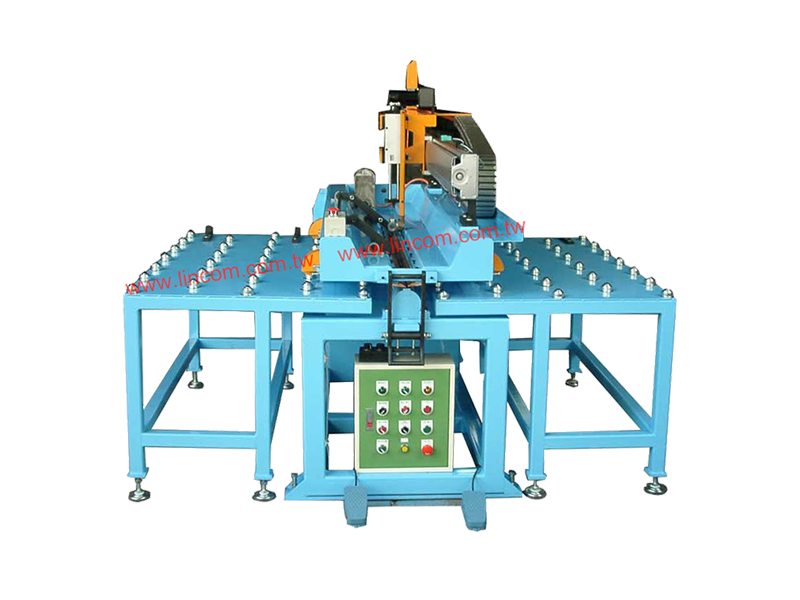

Sheet to Sheet Auto Welder

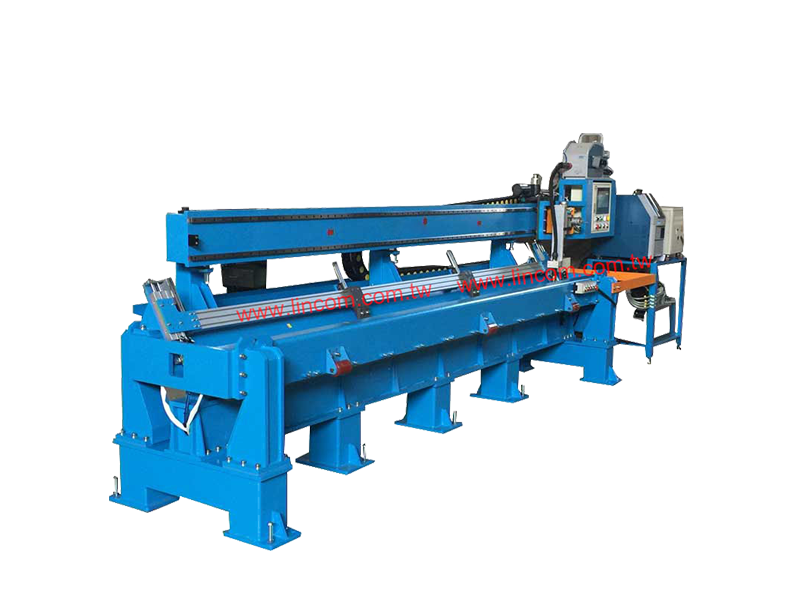

Sheet to Sheet Welder#3500l
.png)

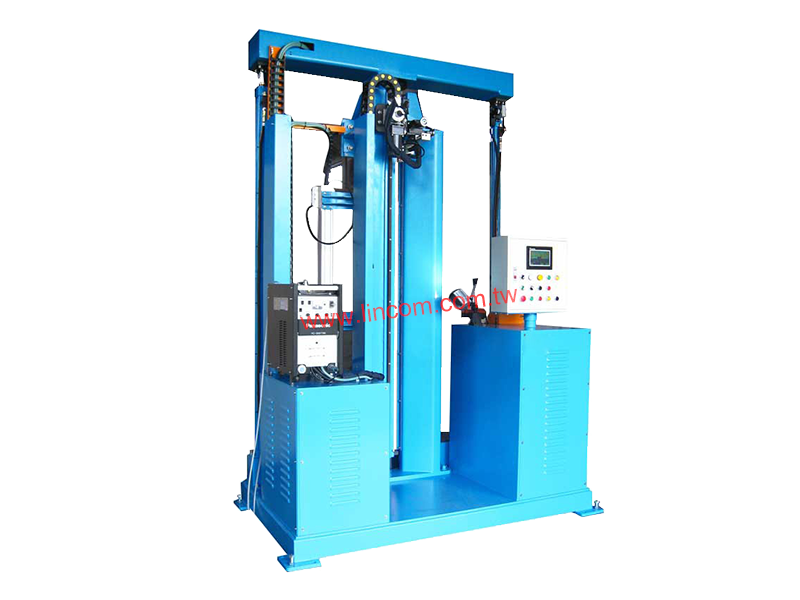

Vertical Straight Welder (For Big Dia. Ducting)

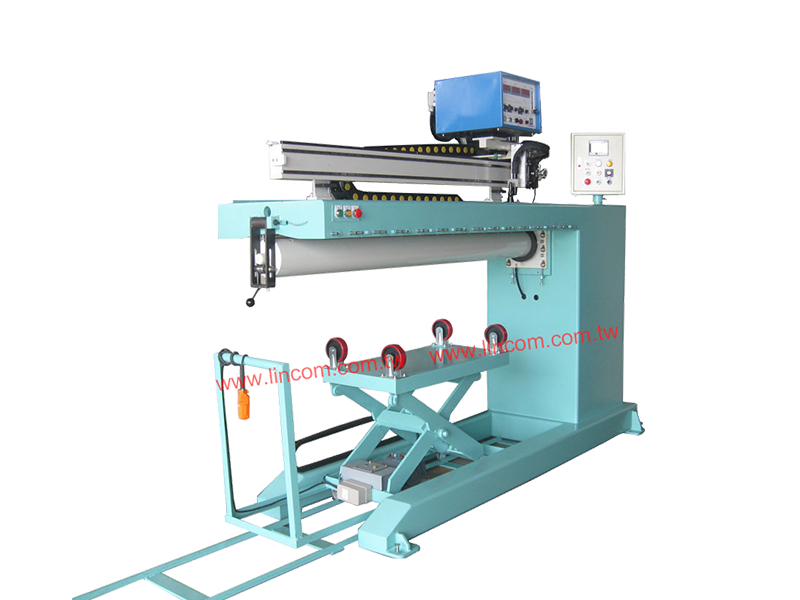

Linear Welder with Lifter
01.png)

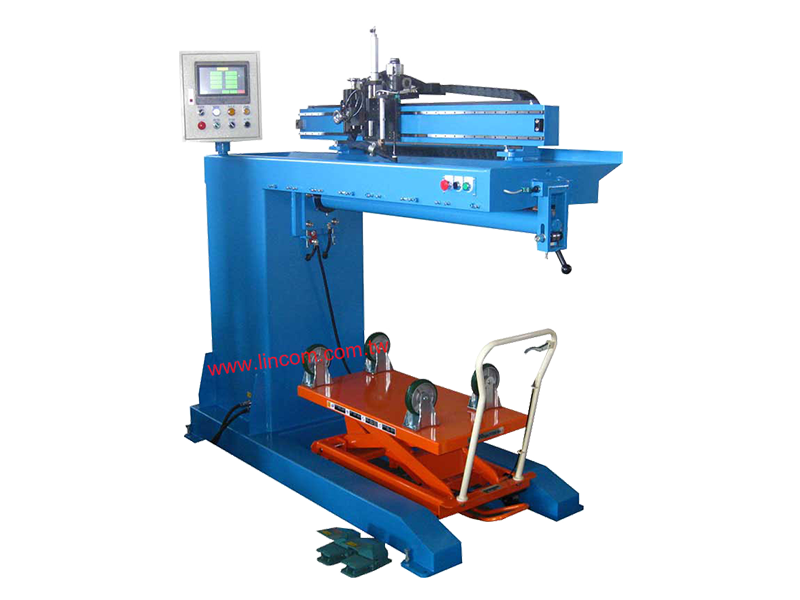

Linear Welder With Lifter
(For Ducting)
| ※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |
VERTICAL ROTOR AUTO WELDER

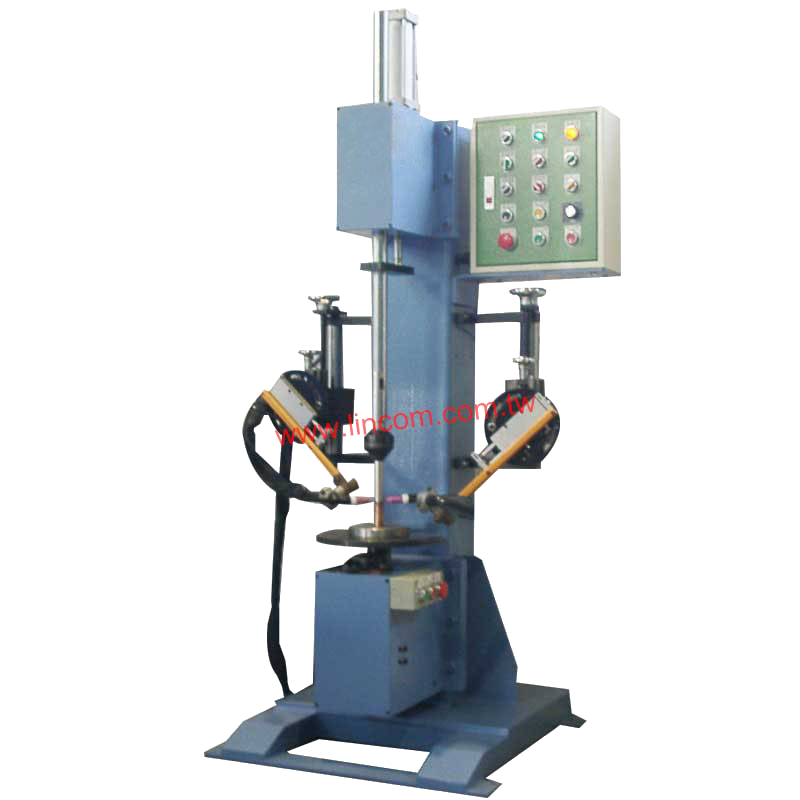

Vertical Rotary Type Auto Welder, Double Gun
* Operation is either by torch stand rotation or table rotation.
* Customer can upgrade the equipment by selecting Automatic Feeder System.
* Digital control system adopts manual / fully automatic operation mode.
* Designed for multi-point positioning.
| Model | Disc φ/Table | Load 0° (kg) | Speed rpm. | Slant Operating | |
| Table Rotation | VTRW-300 | φ330mm | 200kg | TL:0.2~4 rpm MH: 1~16 rpm |
- |
| VTRW-500 | Adjustment Angle | ||||
| VTRW-600 | - | ||||
| Torch Rotation | VGRW-400 | □500x400mm | - | ||
| ※Remarks: | 1.Right of modification reserved. 2.Above are our standard model, for special requirements are welcome! |

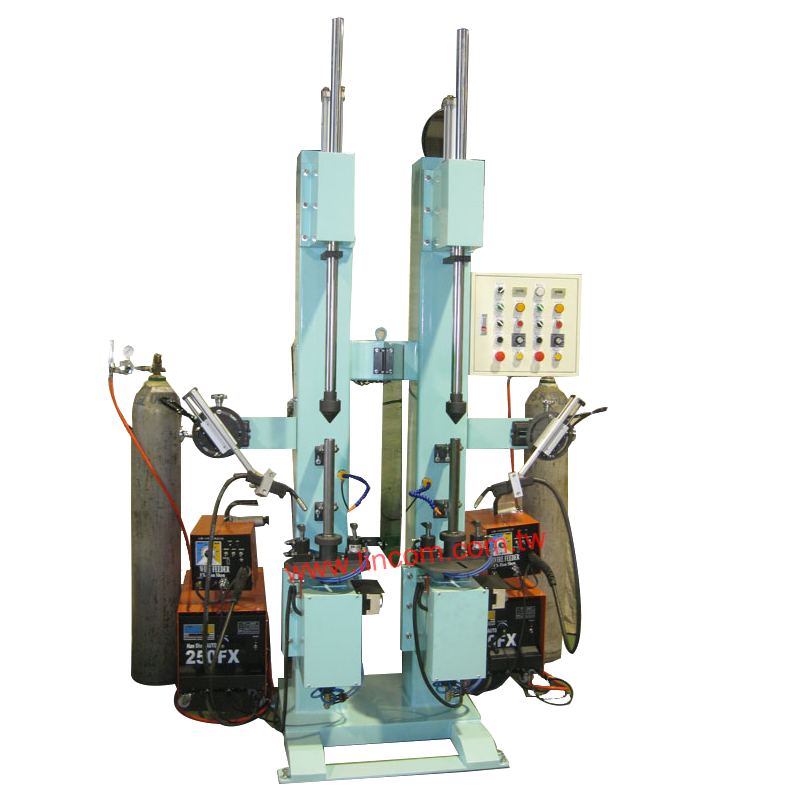

Vertical Rotary Type Co2 Auto Welder CO2
.png)

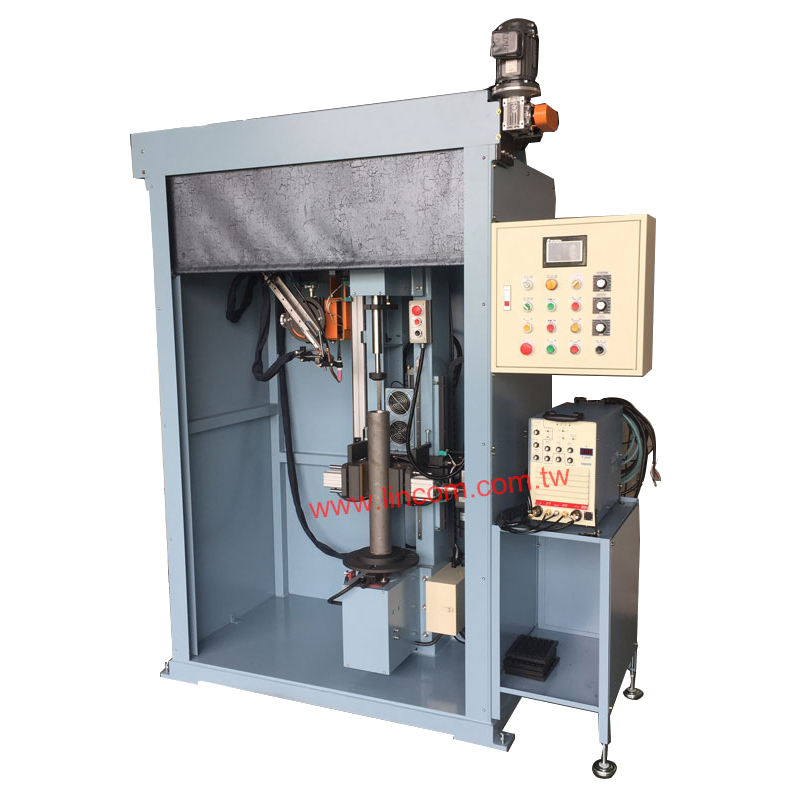

Vertical Argon Auto Welder, Full Cover(Head Auto Change)
.png)

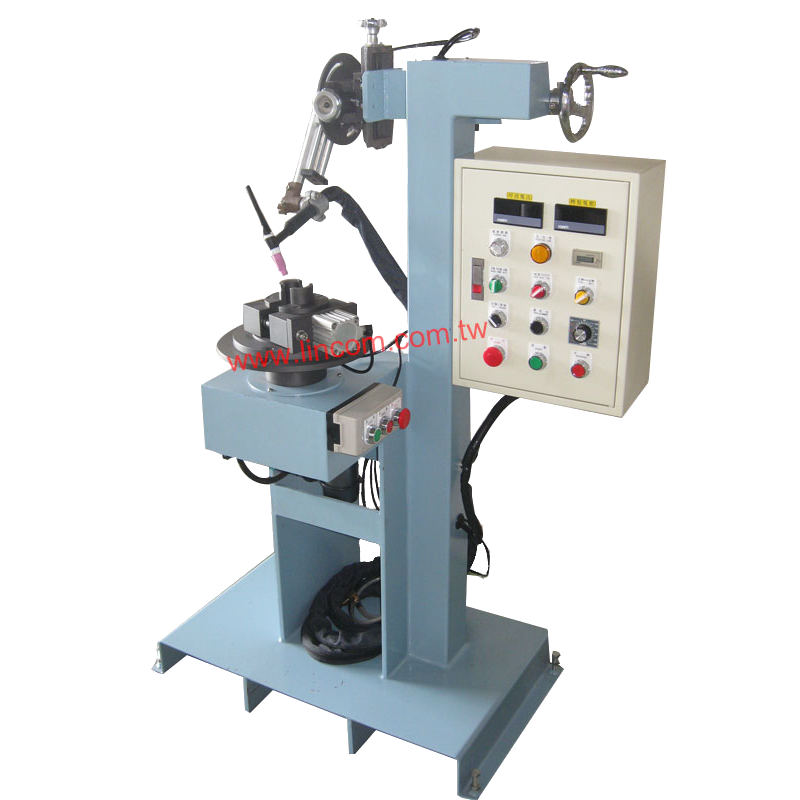

Argon Auto Welder With Air Clamp(For Hyd. Hose)
.png)

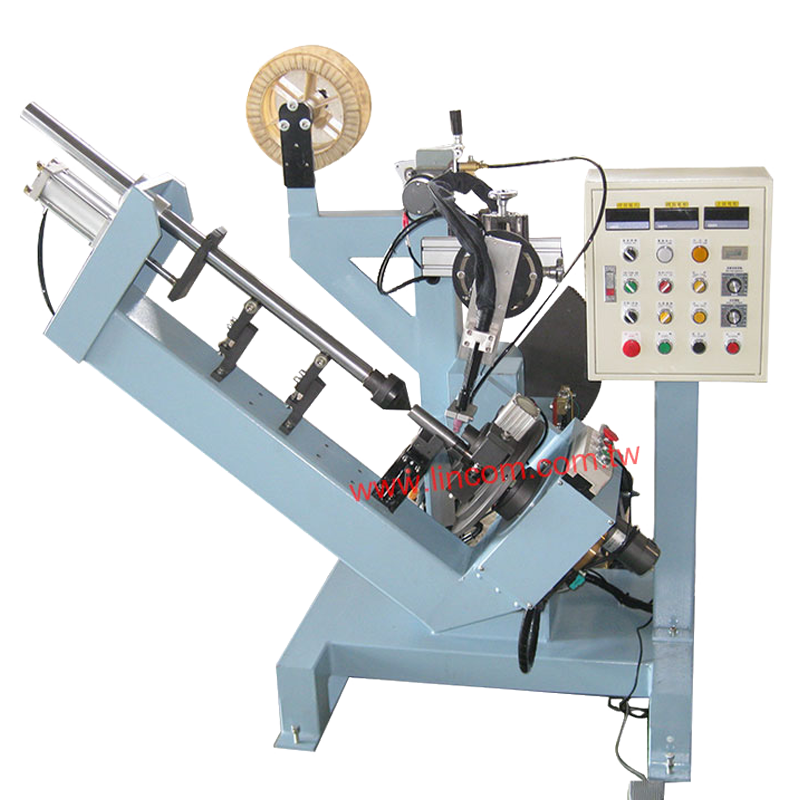

Argon Auto Welder With Material Feeder(For Hyd. Hose)
| ※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |
HORIZONTAL AUTO WELDER
* Applicable for cylindrical shape and pipe-to-pipe welding.
* Main spindle moves along the linear slide rail for extending service life and enhancing welding accuracy, suitable for thin plate welding and pipe-to-pipe welding.
* The control program controls the ending arc of Tig welding to eliminate the problem of ending hole.
* Customer can upgrade the equipment by adding Tig feeding system for automatic Tig / CO2 / Saw welding.
| Model | Opening of flange | Max. diameter of workpiece | Rotating speed of spindle(RPM) |
| LHW-600 | 600mm(max) | φ400mm(max) | 0.5-8.5 rpm |
| LHW-800 | 800mm(max) | ||
| LHW-1000 | 1000mm(max) | φ800mm(max) | 0.3-3.5 rpm |
| LHW-1300 | 1300mm(max) | ||
| LHW-1500 | 1500mm(max) |
| ※Remarks: | 1.Right of modification reserved. 2.Customers specific requirement are Welcome! |

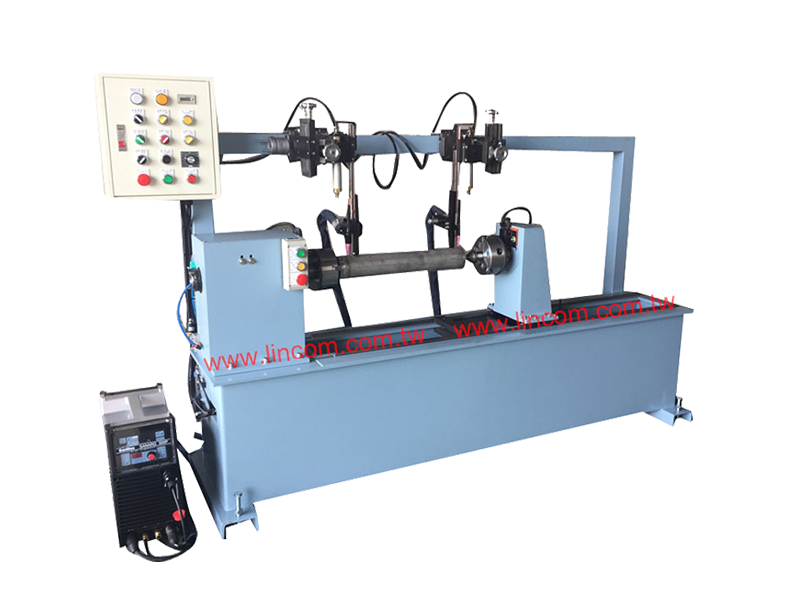

Argon Auto Welder, Twin Gun

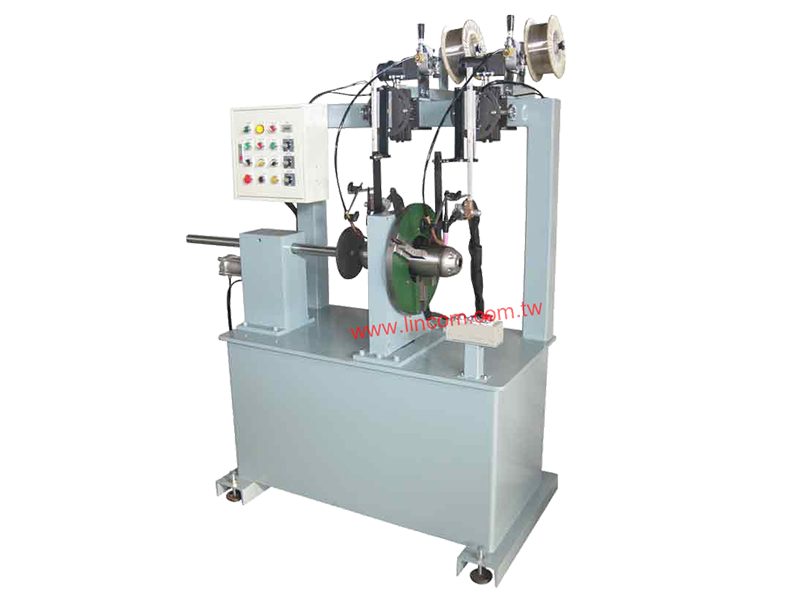

Auto Welder for Muffler,
With Material Feeder

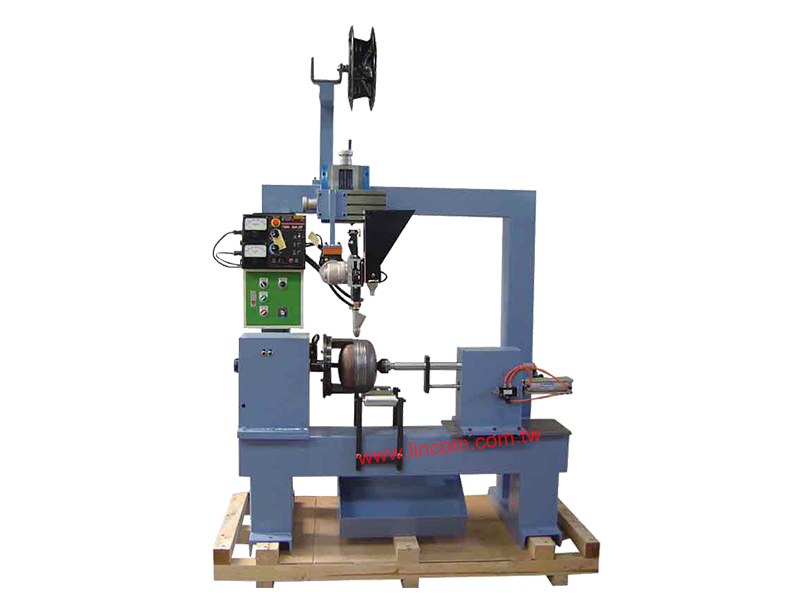

LPG Cylinder Submerge Auto Welder, Single Gun

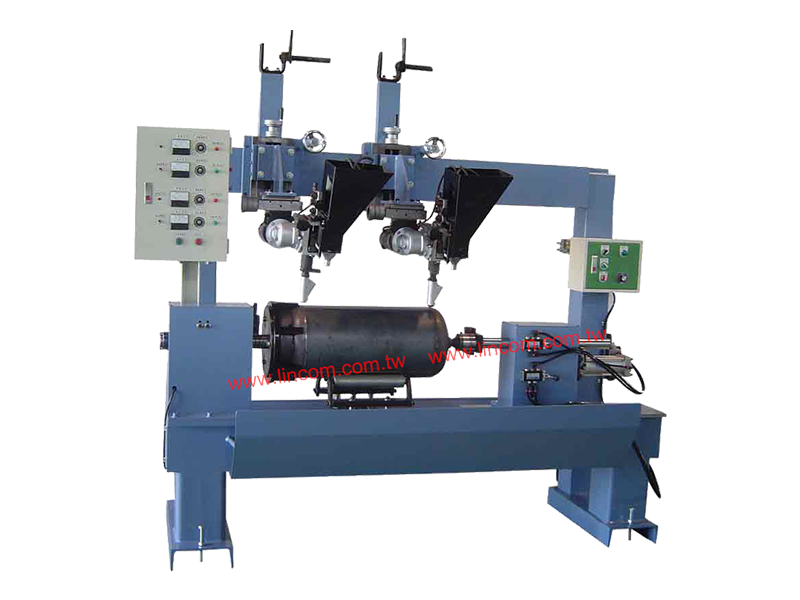

LPG Cylinder Submerge Auto Welder, Twin Gun
Auto Welder for Framework, Two Torch

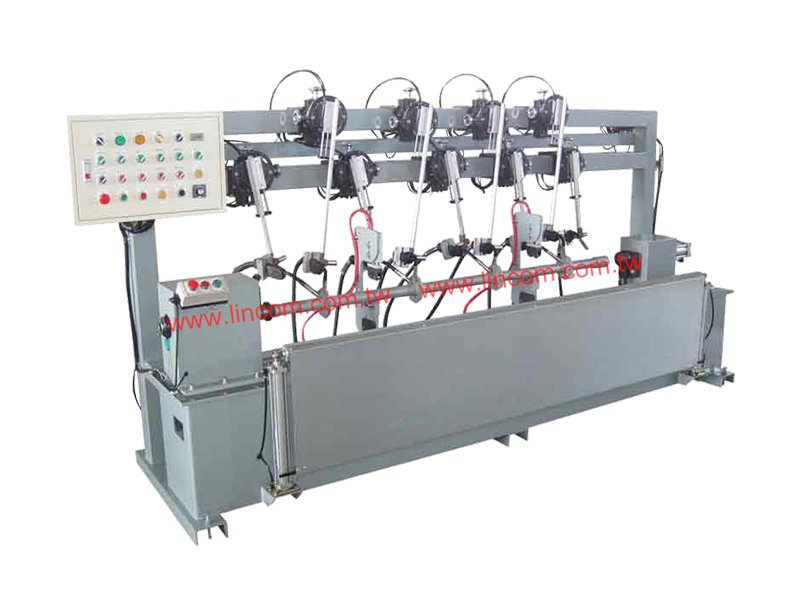

Auto Welder for Framework, Nine Torch
| ※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |
WELDING LINE AUTO POLISHING MACHINE
* Pneumatic / Hydraulic double cutting, sharp straight and effective.
* Pneumatic / Hydraulic copper mold clamp with auto center positioning function. Efficient operation and high accuracy.
* Inverter DC for higher precision welding.
| Pneumatic Shear Welder | Hydraulic Shear Welder | |
| Strip Width | 168-380mm | 168-420mm |
| Strip Thickness | 2.0mm | 2.5-4.0mm |
| Shearing System | Pneumatic | Oil Hydraulic |
| Clamping System | Pneumatic | Pneumatic/ Hydraulic |
| Tig Welder | 200A | 200A/ 300A |
※Customers specific requirement are Welcome!

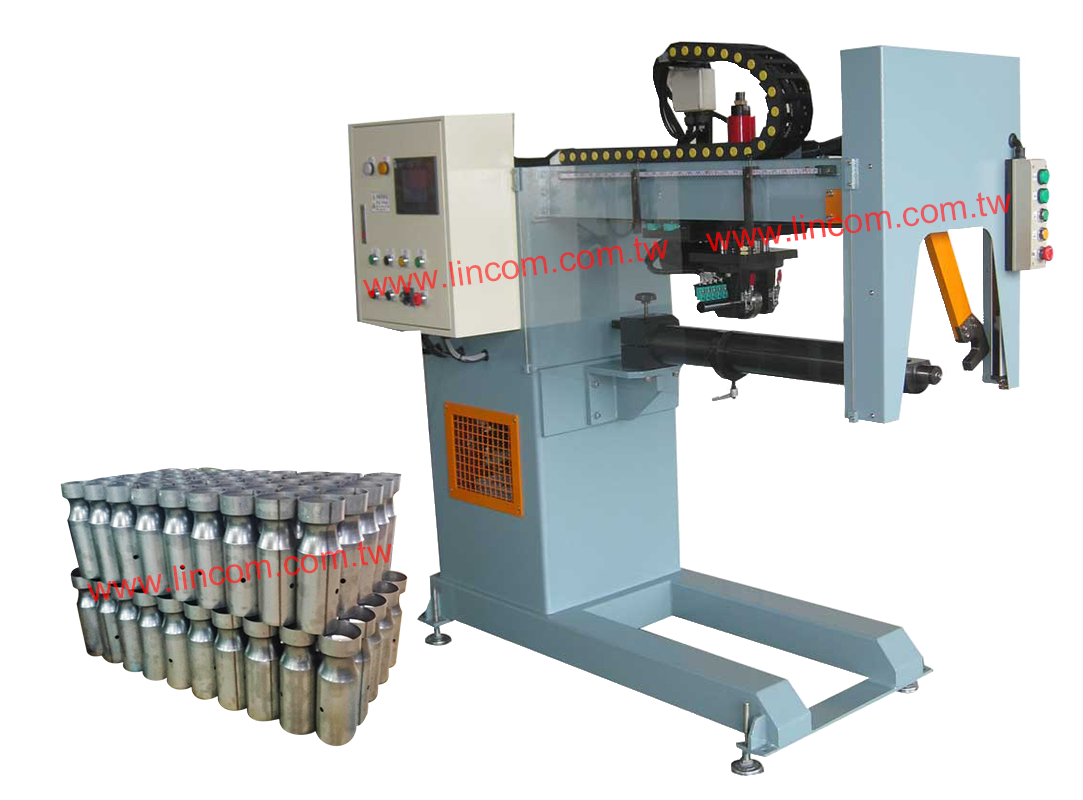

Welding Bead Auto Polishing Machine 800L
OTHERS SPECIAL AUTO WELDER DESIGN

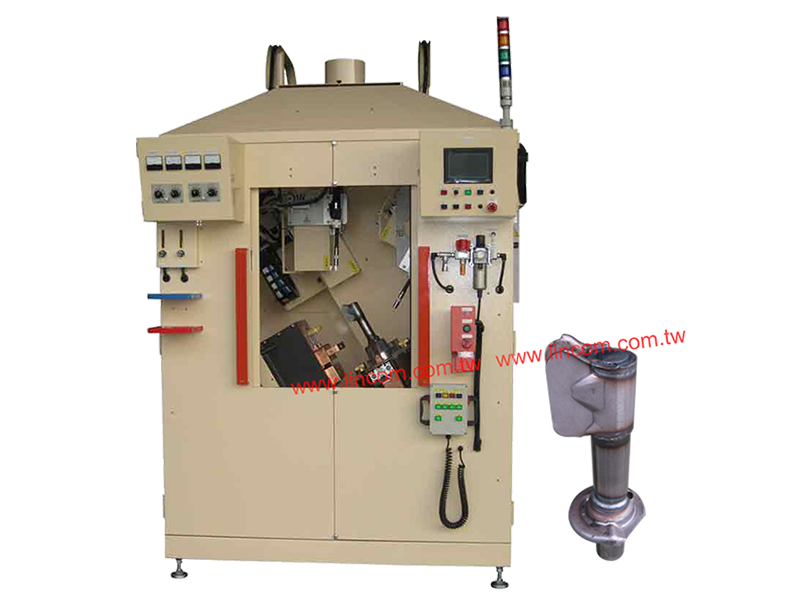

Shock-Absorber Auto Welder, 6 Axle Servo Auto Position

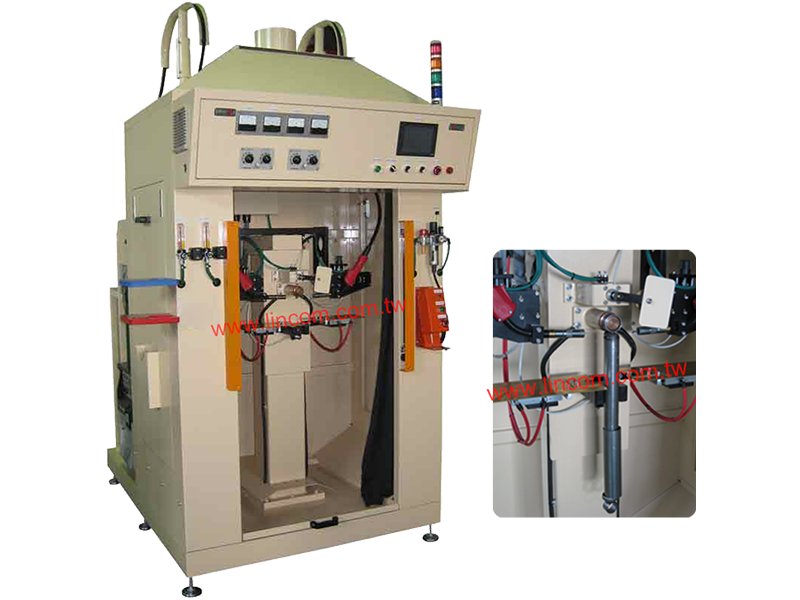

Shock-Absorber CO2 Auto Welder, Twin Gun

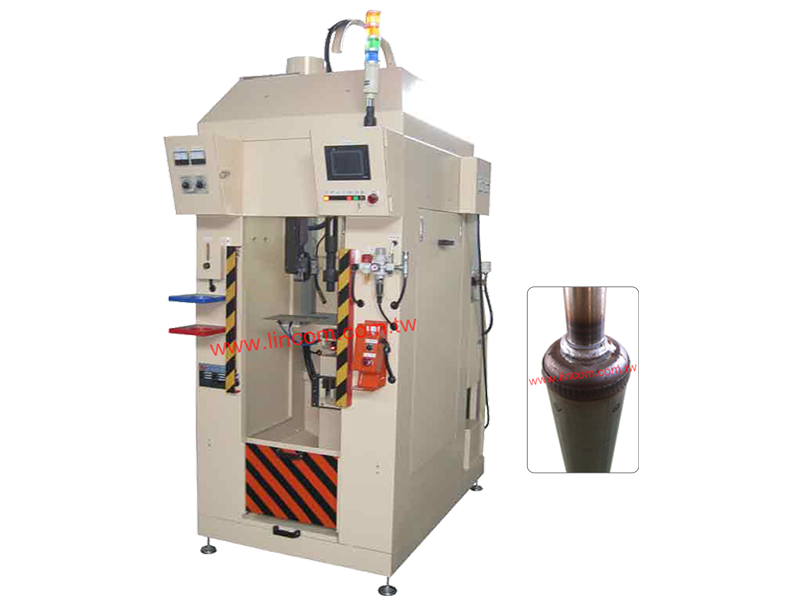

Shock-Absorber CO2 Auto Welder, Swivel Gun

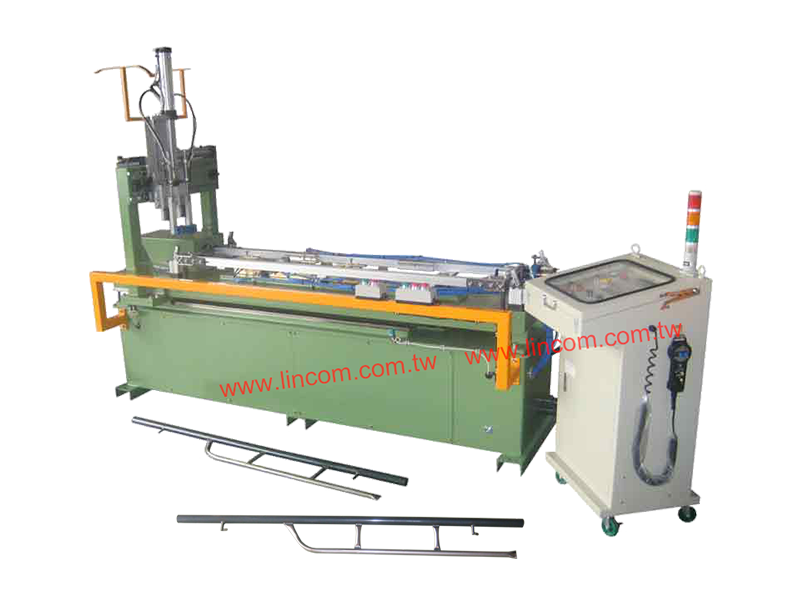

CO2 Auto Welder for Scaffolding Frame, Twin Gun, Servo Moving Type
CO2 Auto Welder for
Scaffold Stud Support

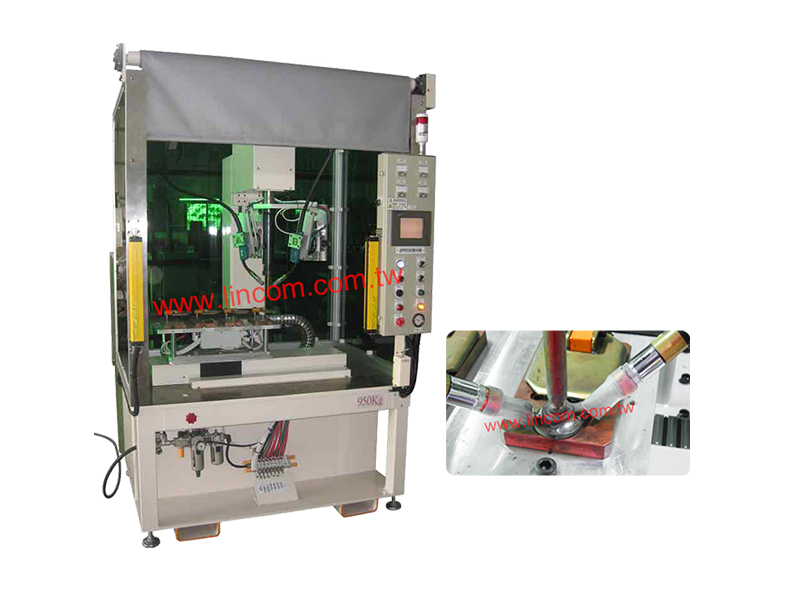

Swivel Gun CO2 Auto Welder

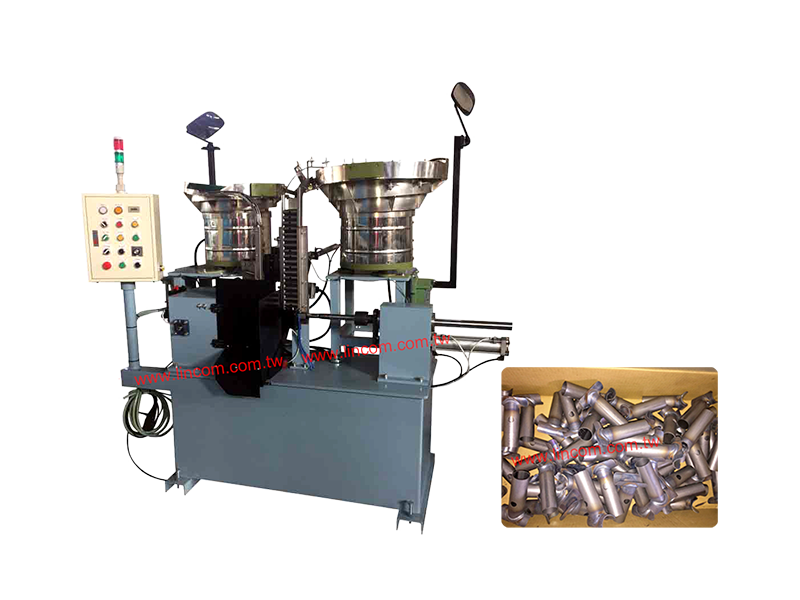

CO2 Auto Welder

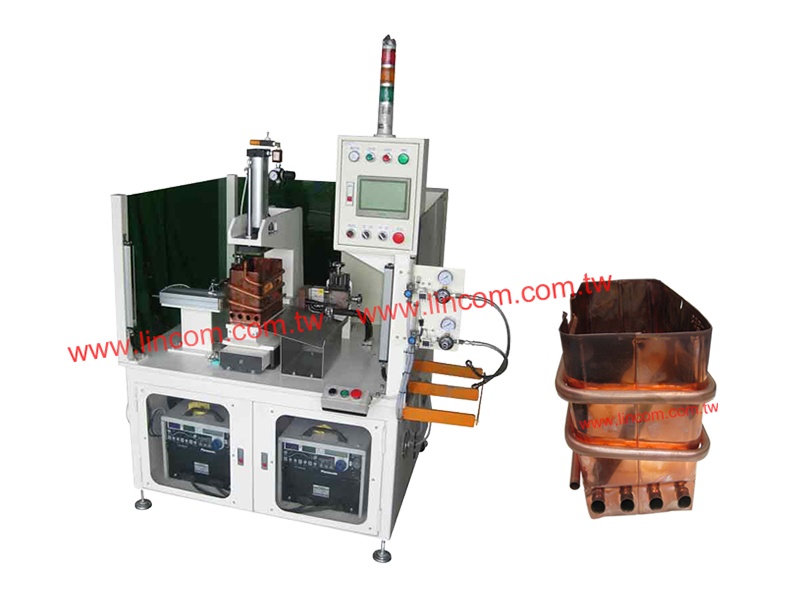

Argon Auto Welder for Heater Tank, by Servo Moving, Twin Gun

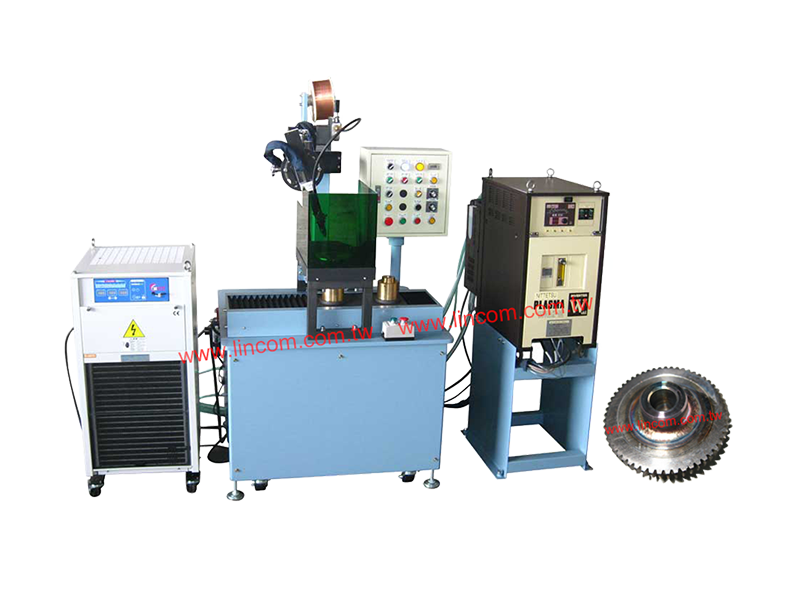

Auto Welder for Gear

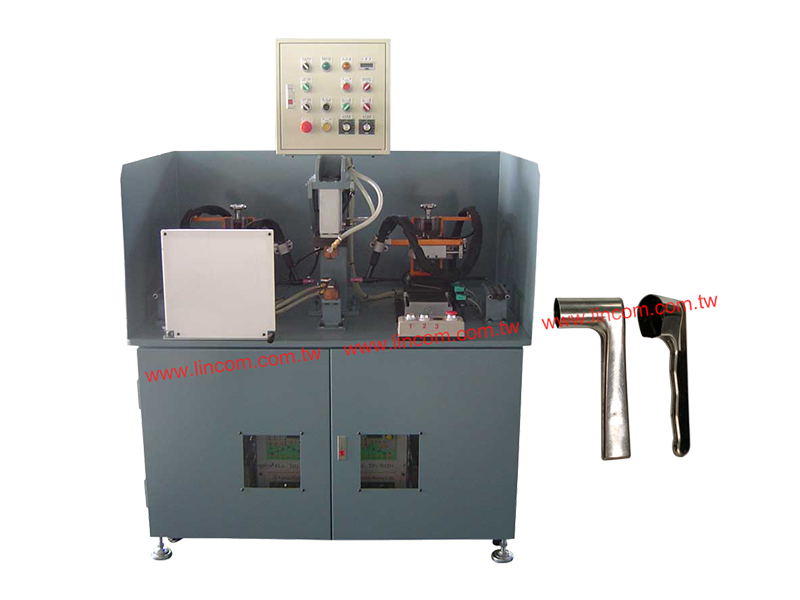

Argon Auto Welder for Handle, Twin Gun

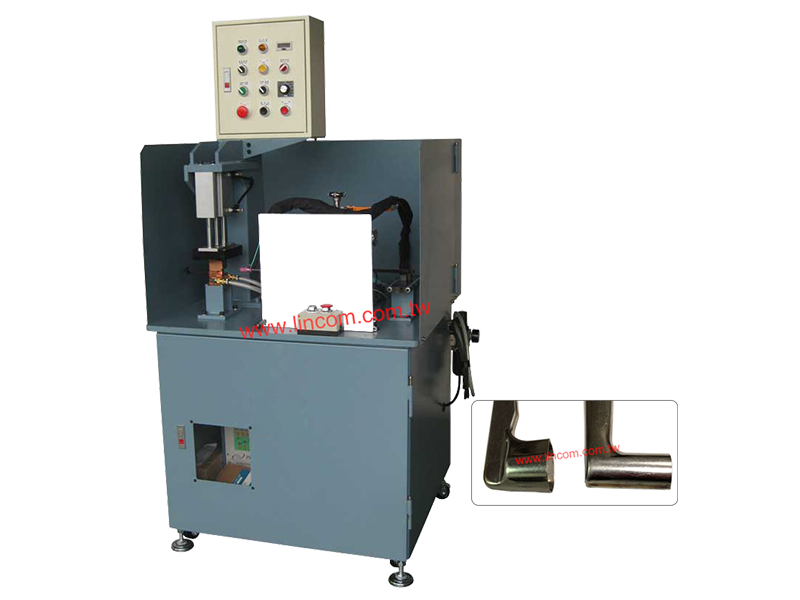

Argon Auto Welder for Handle, Single Gun

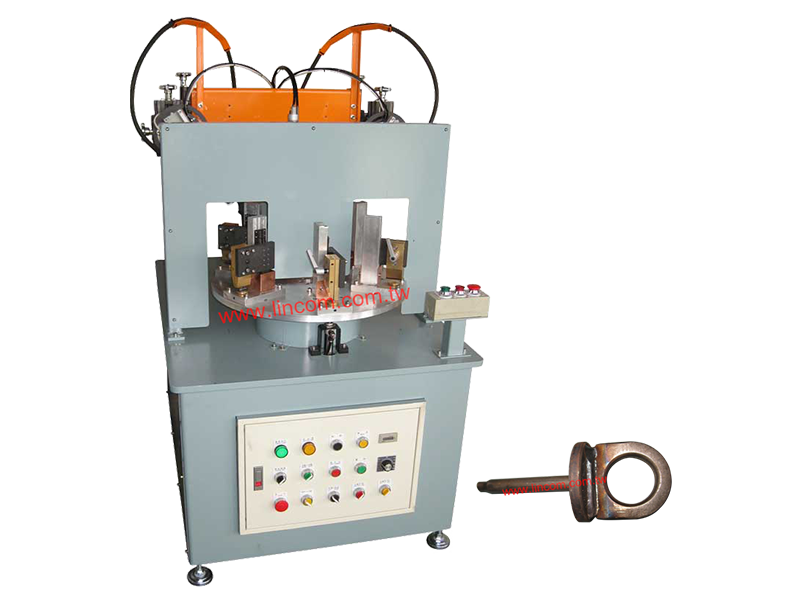

Rotary CO2 Auto Welder

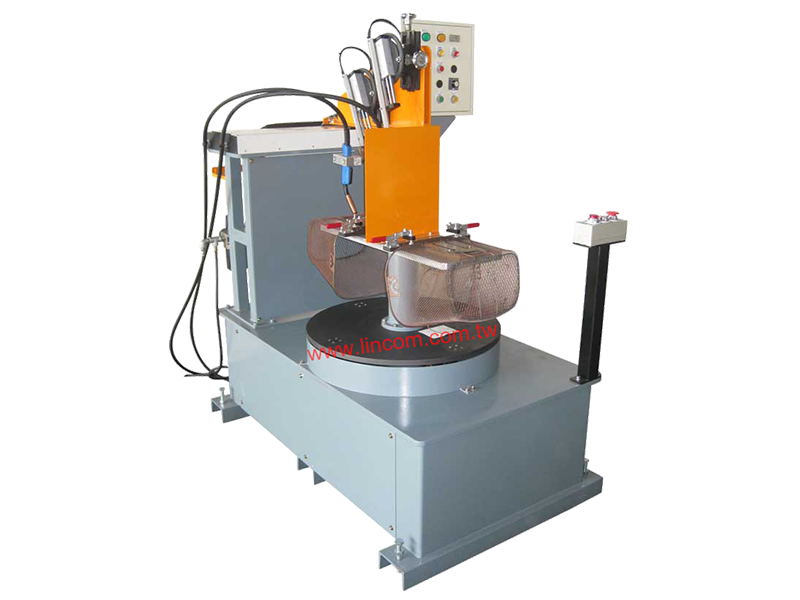

CO2 Auto Welder, Interchange 2 Station, Twin Gun. CO2

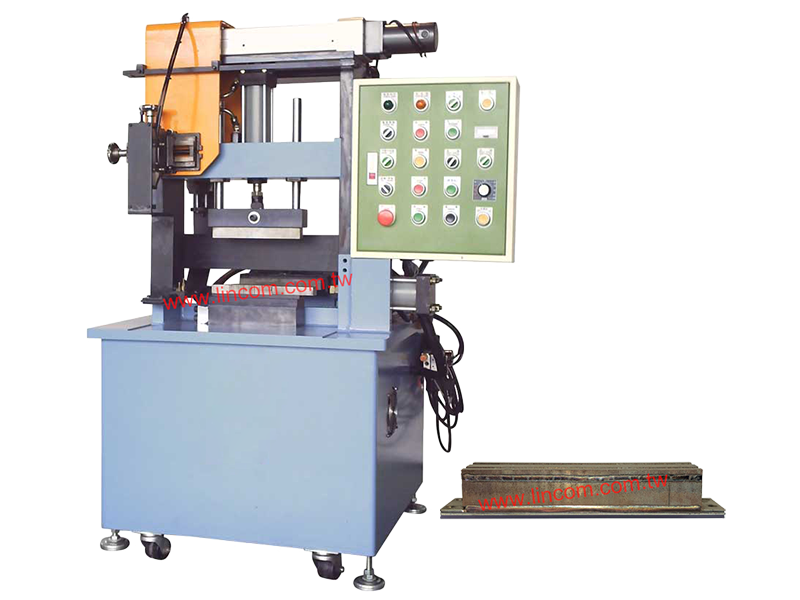

Argon Auto Welder, For Silicone Steel, Twin Gun

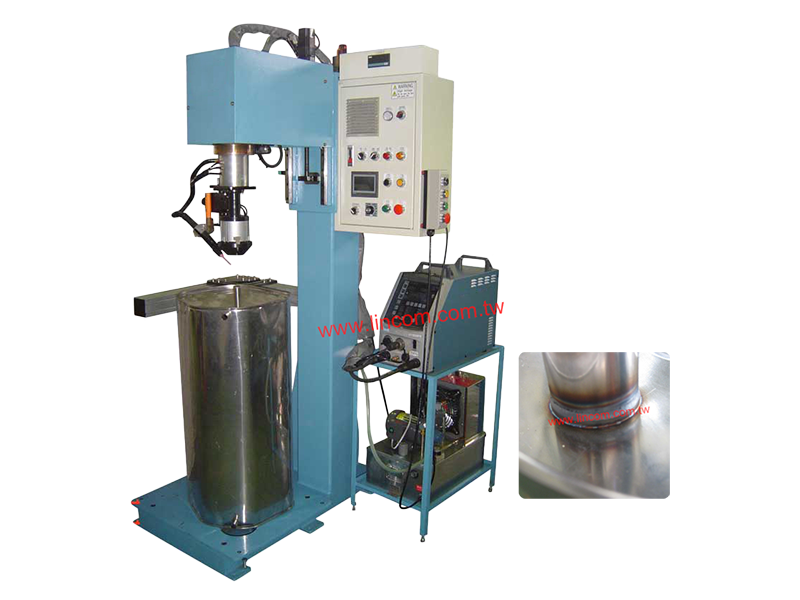

Swivel Gun Argon Auto Welder for Tank Outlet Pipe

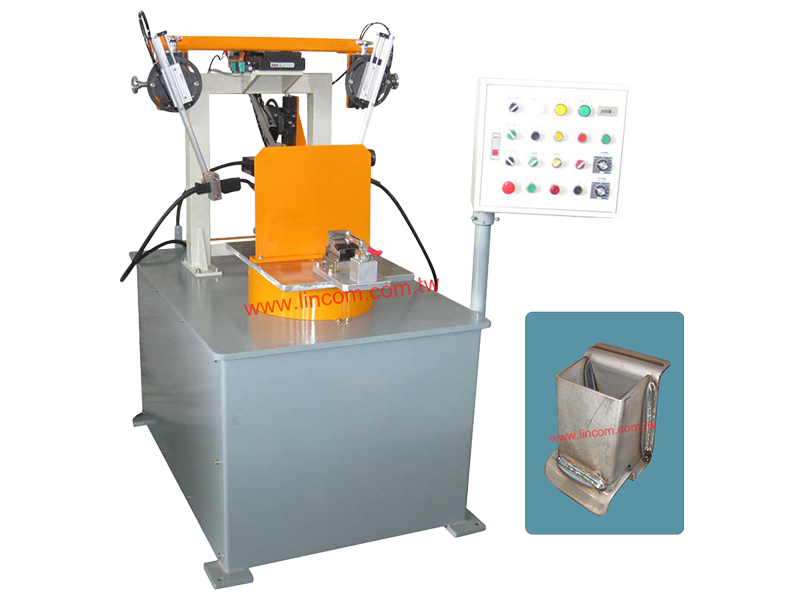

Mold Interchange Auto Welder for Storage Cage's Leg, Three-Gun Type

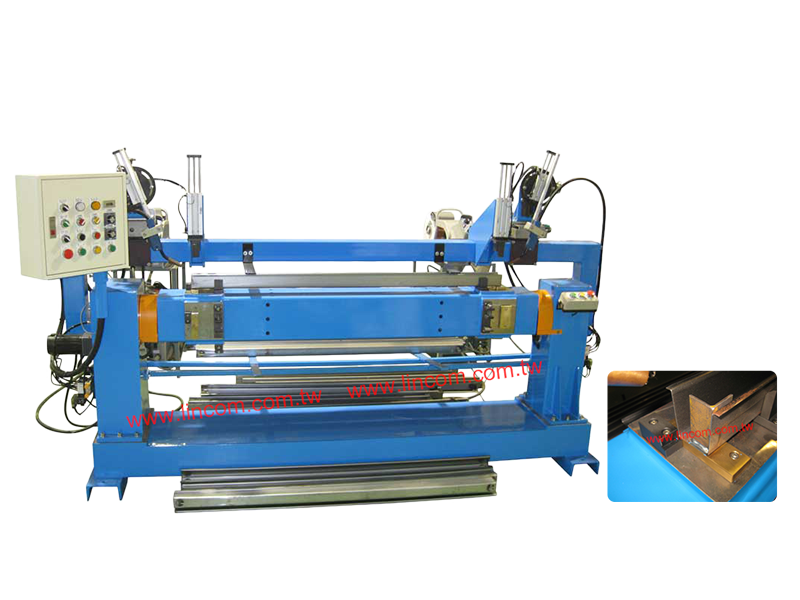

CO2 Auto Welder for Steel Pallet Leg

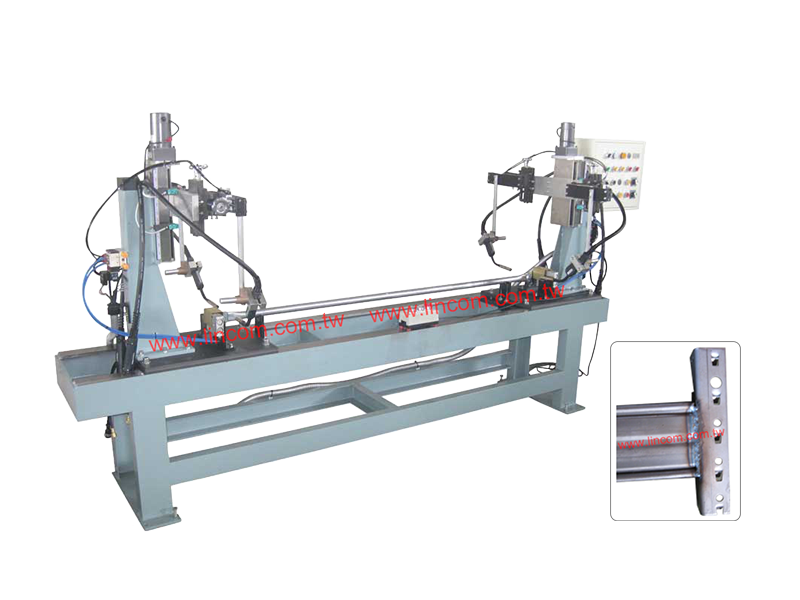

Storage Box Beam CO2 Auto Welder

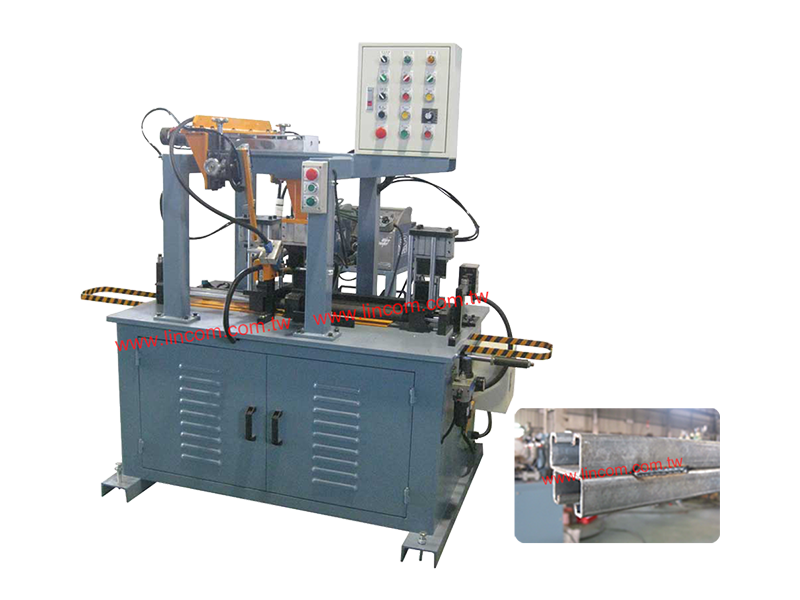

Auto Welder For Cable Tray U-Channel Back To Back
Argon Pre-Weld, 3-Gun

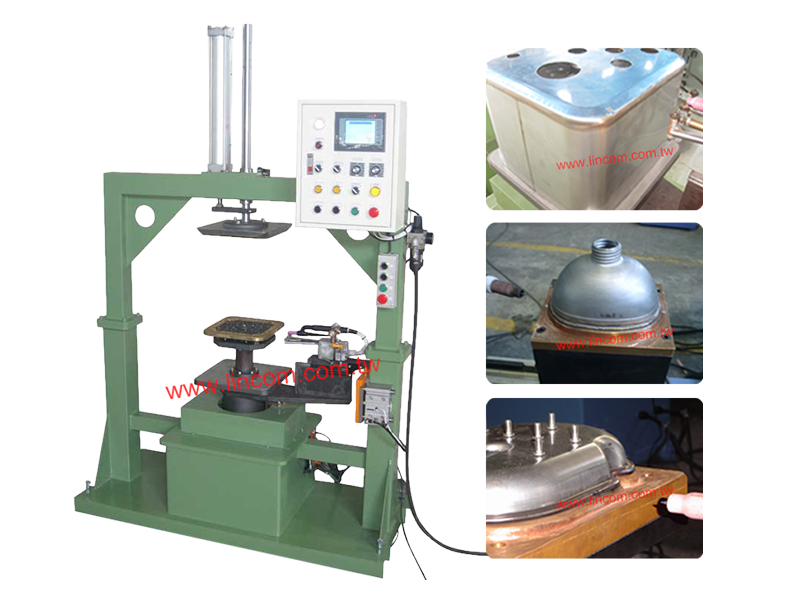

Argon Auto Welder, Swivel Gun

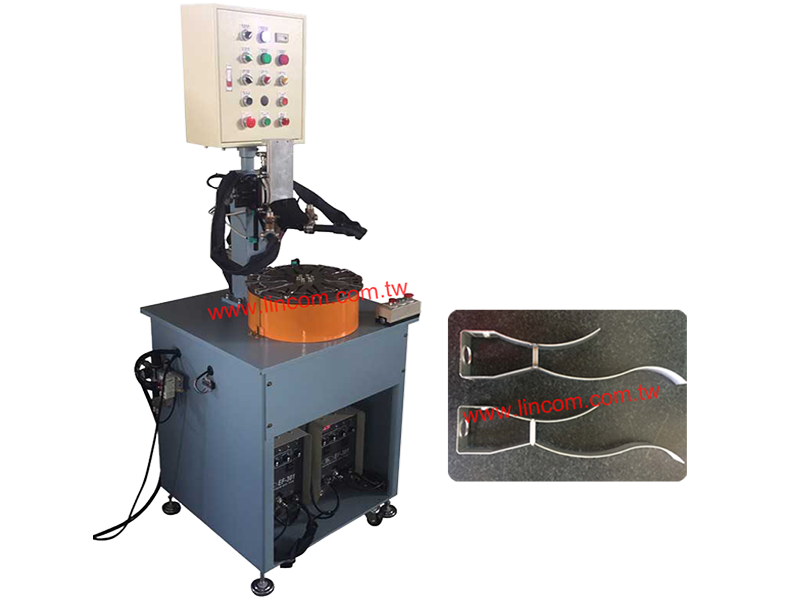

Argon Auto Welder, Twin Gun
.png)

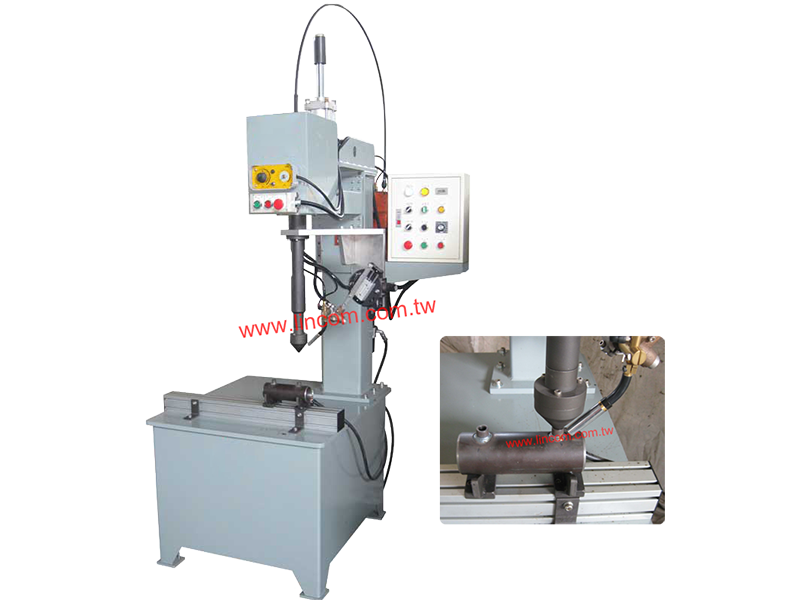

CO2 Auto Welder, Swivel Gun
(For Hydraulic Cylinder Outlet)
| ※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |
OTHERS SPECIAL PURPOSE SPOT WELDER DESIGN

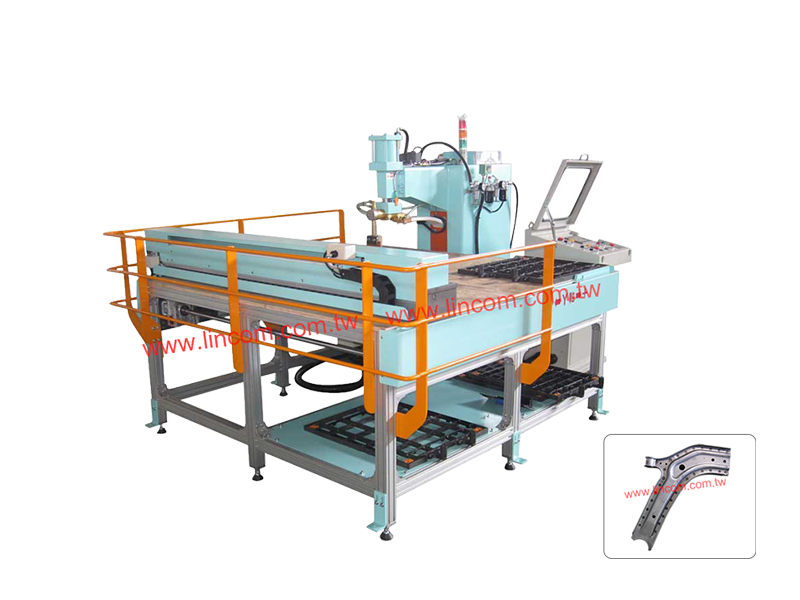

X,Y Axle Spot Welder 600x600

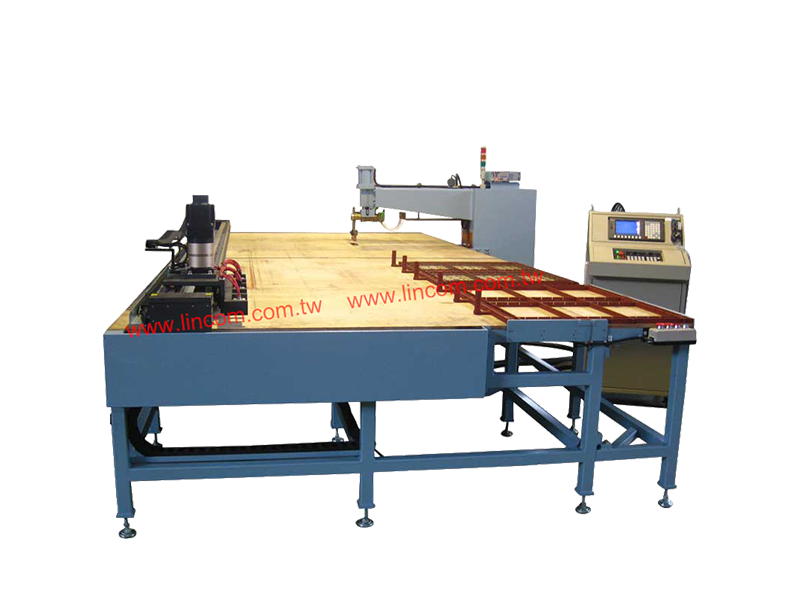

X, Y Axle Spot Welder 900X1200

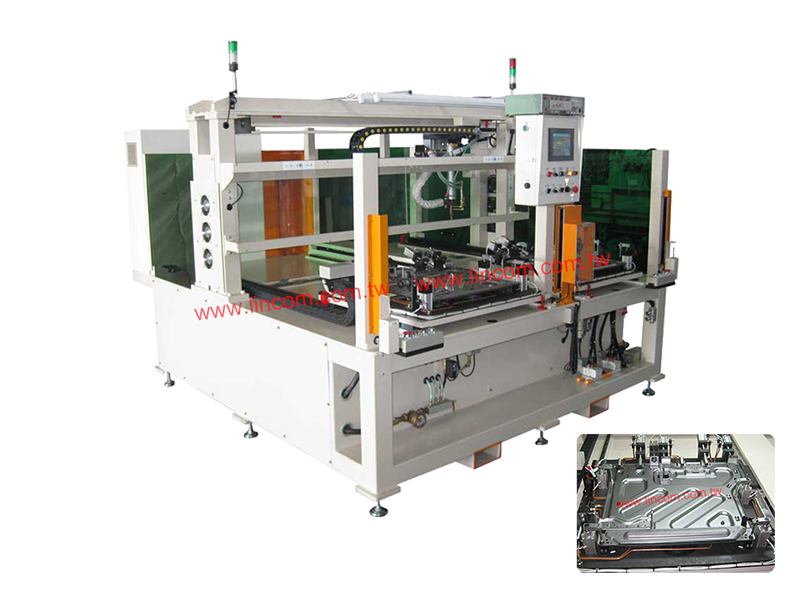

5 Axle Spot Welder

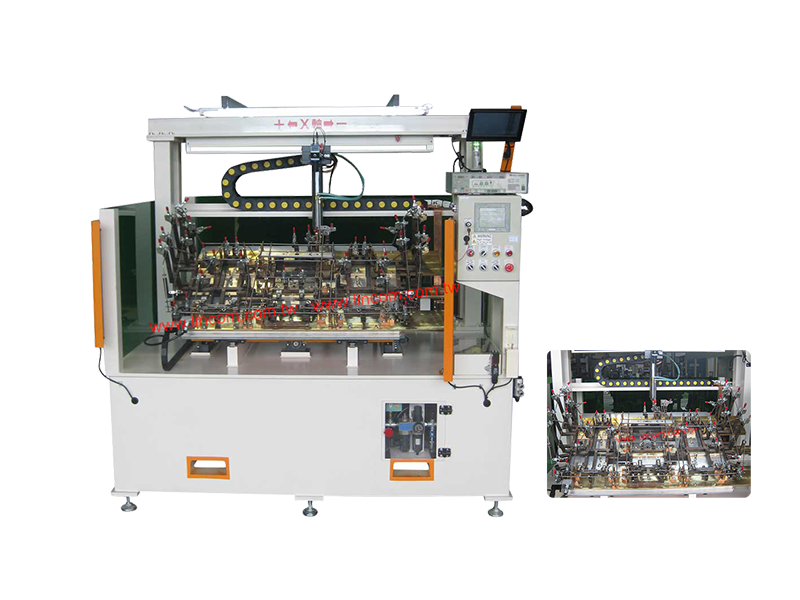

3 Axle Spot Welder

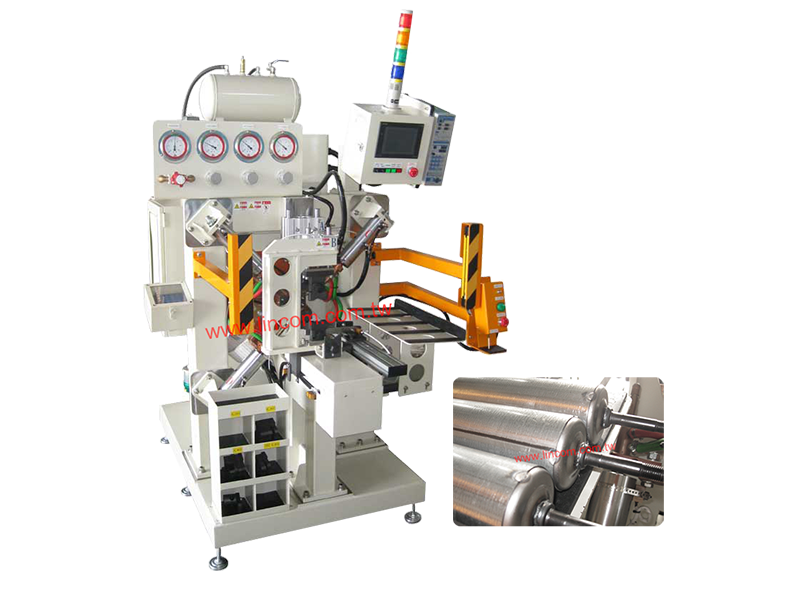

4-Point Spot Welder for Shock Absorber, with Servo Position

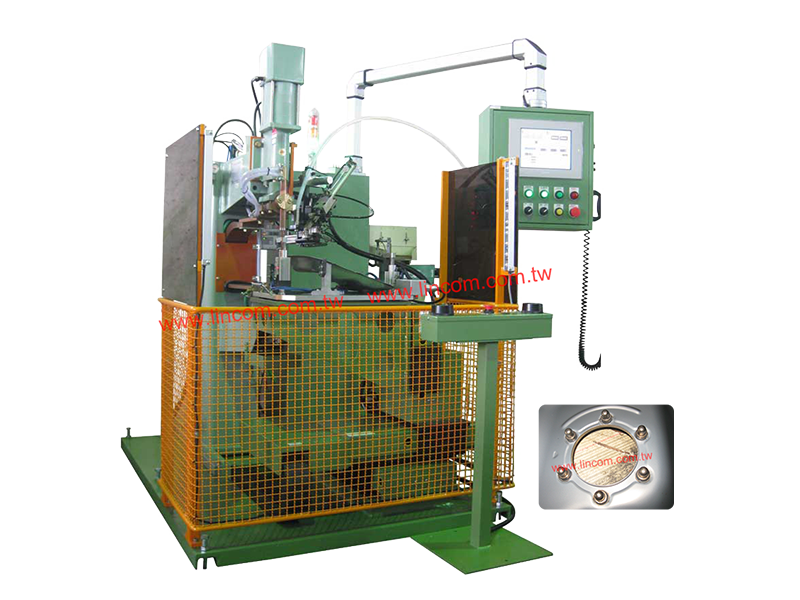

3 Axle Spot Welder with Servo Material Auto Intake

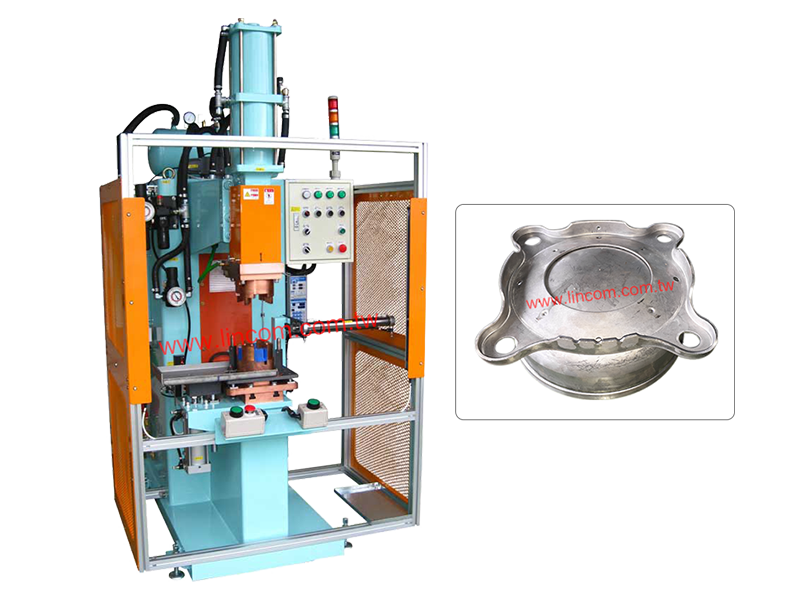

Auto Welder for Compressor Leg

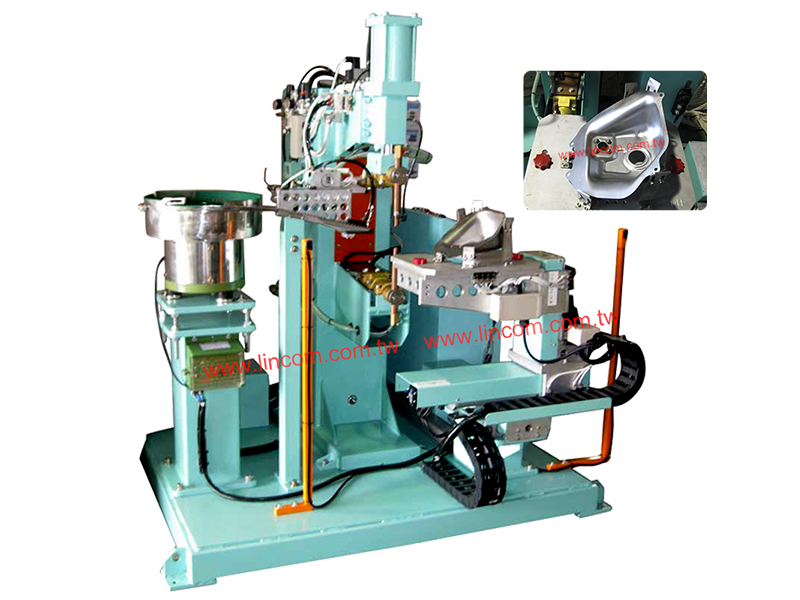

X Y Z Moving Material Auto Input
.png)

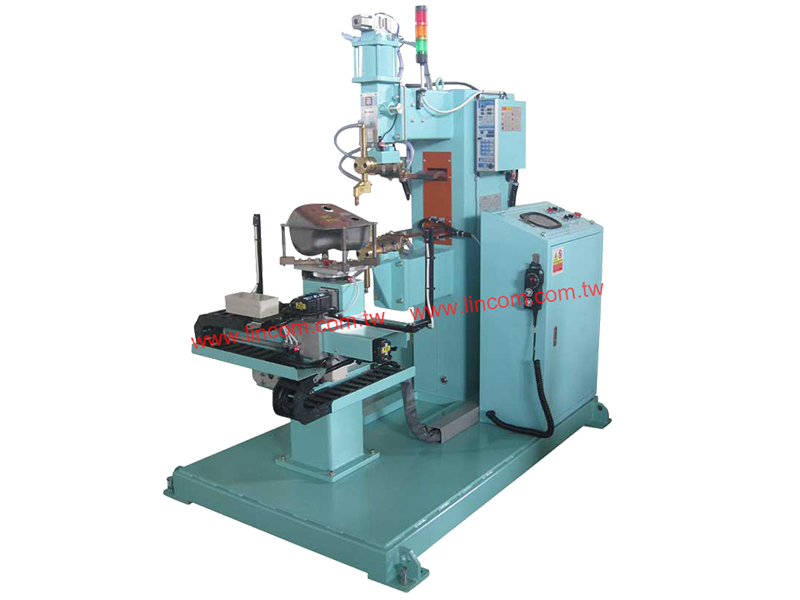

X Y With Swivel Spot Welder (For Fuel Tank)
.png)

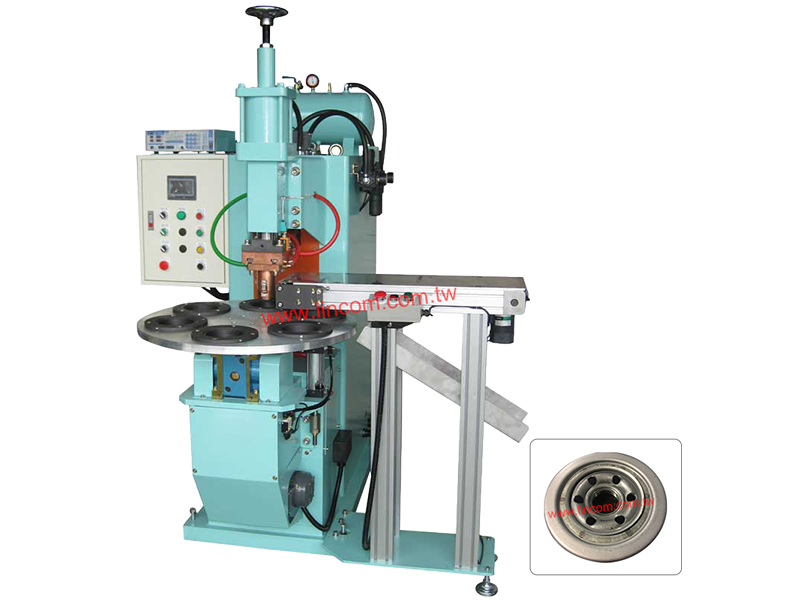

Rotary Type Spot Welder
(6 Station for Oil Filter)

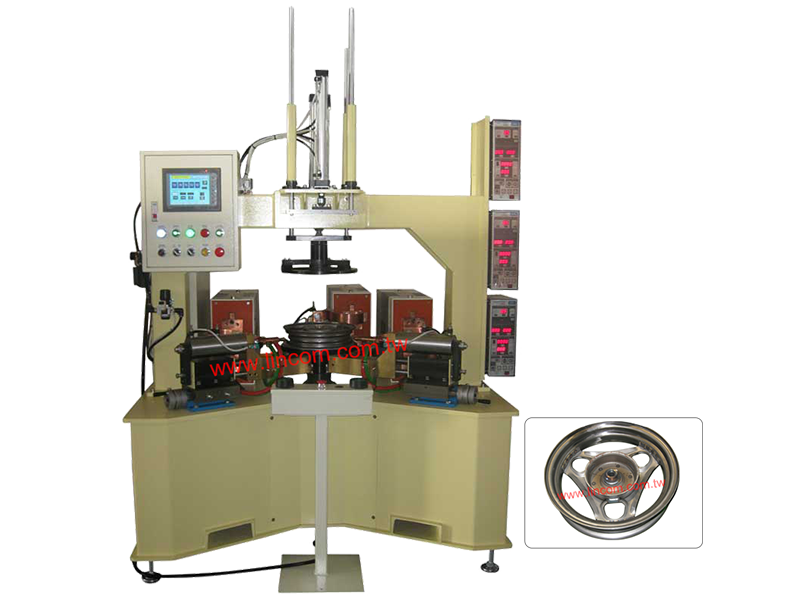

Servo Rotary Type Spot Welder for Car Rim, 3 Shaft

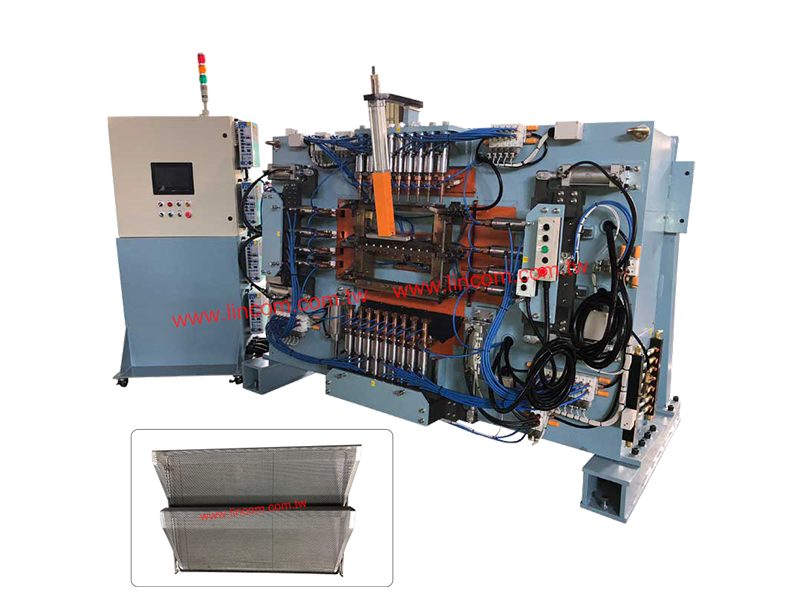

Multi-Point Spot Welder

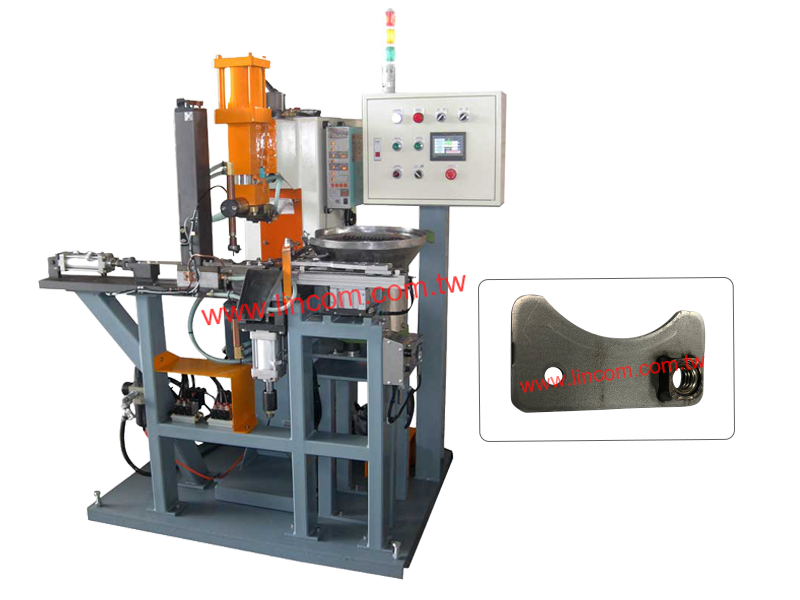

Auto Spot Welder for Nuts with Plate

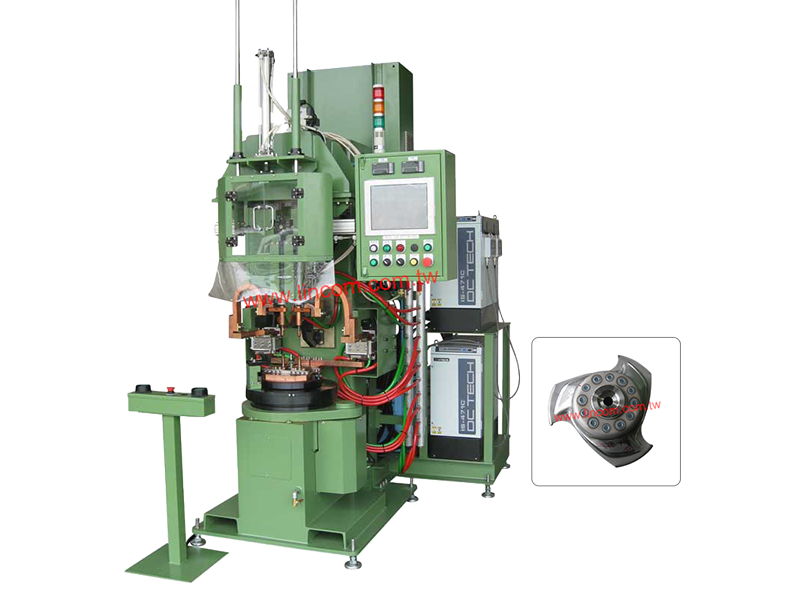

Spot Welder for Rim Brake Hub

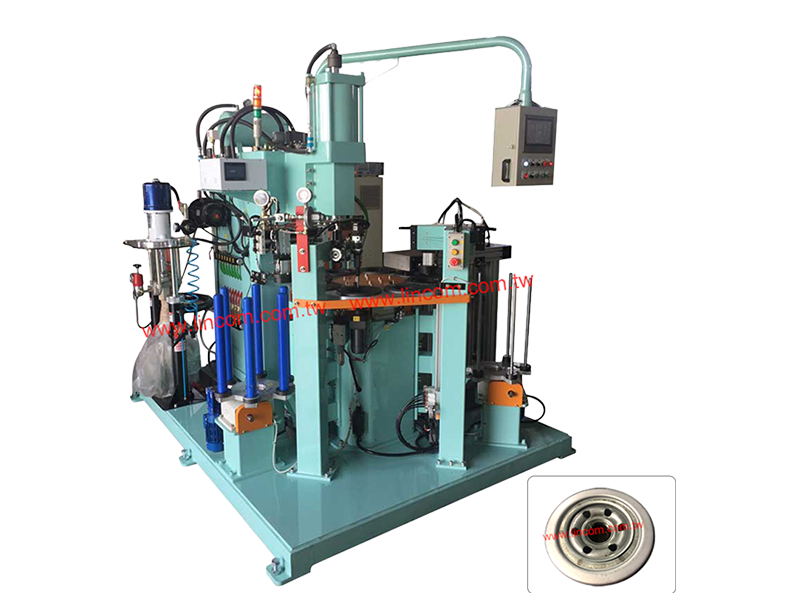

Auto Spot Welder for Oil Filter

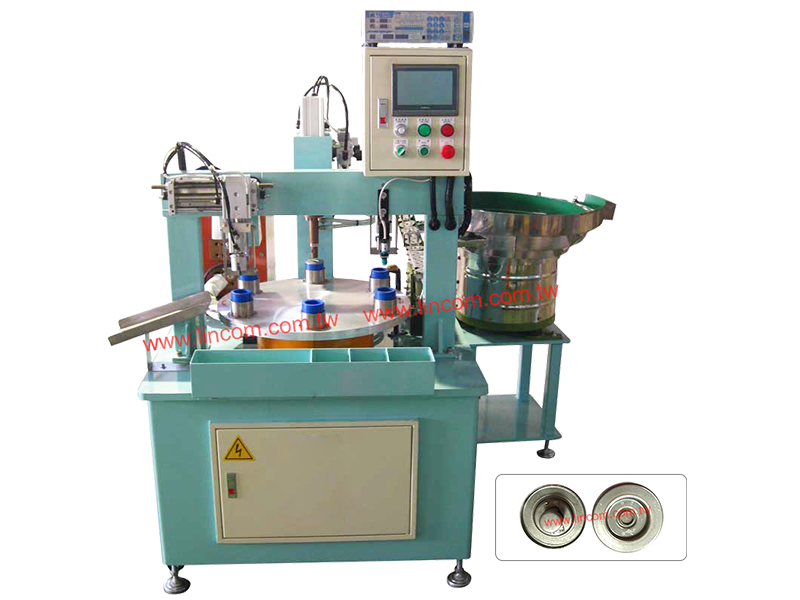

Rotary Spot Welder with Material Auto Feeding

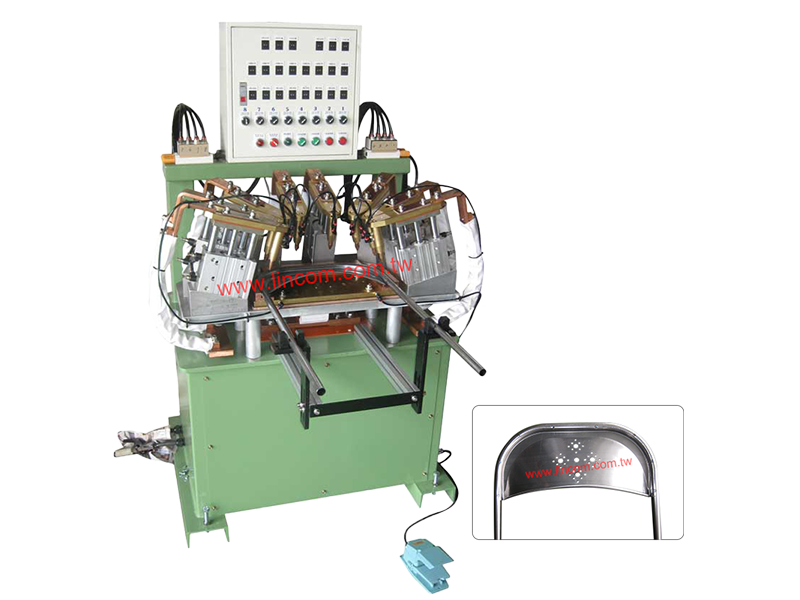

Multi-Spot Welder for Chair

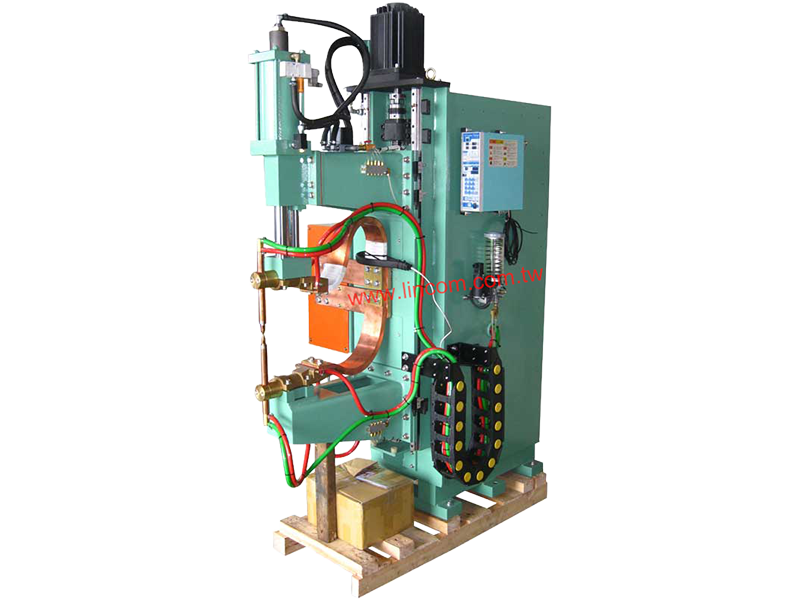

Spot Welder with Servo Lifter

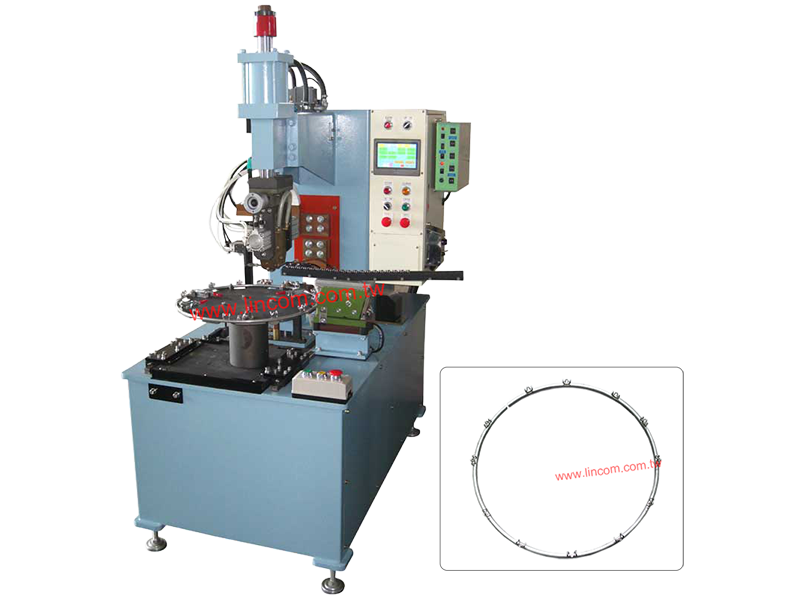

Auto Spot Welder with Servo Position Setting

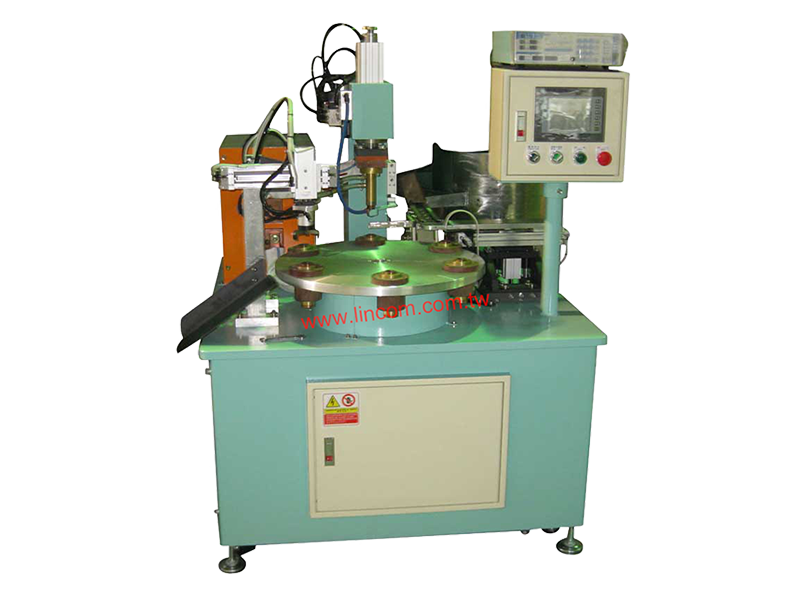

Spot Welder for Fuel Tank Cap

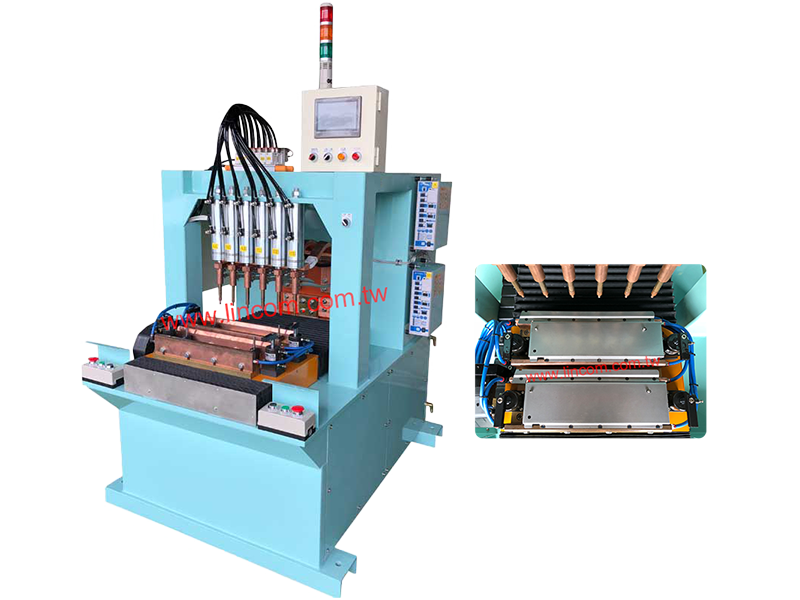

Multi-Spot Welder for Shelve

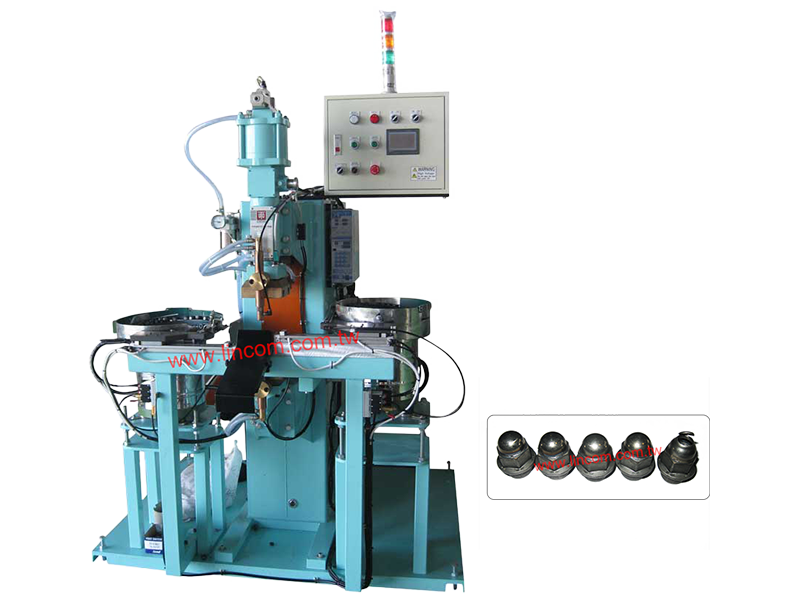

Nuts Auto Welder

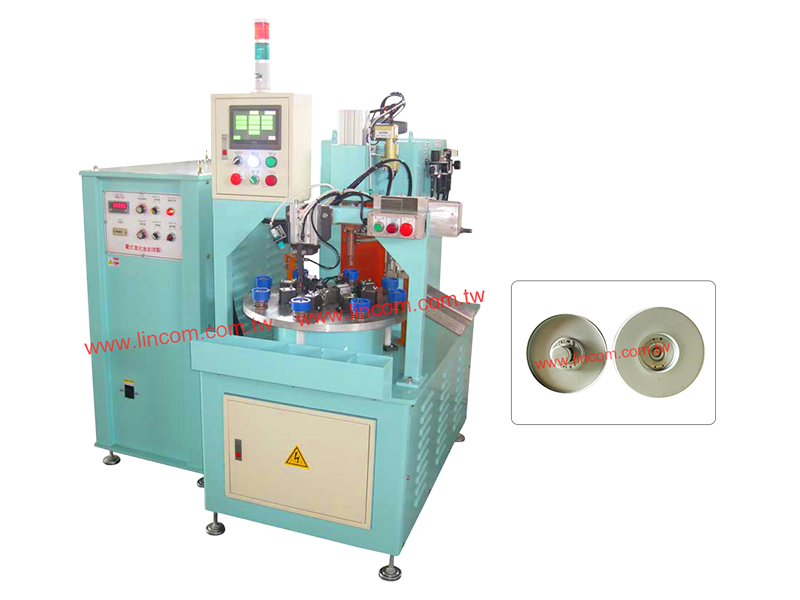

Rotary Condensing Welder,
8 Station

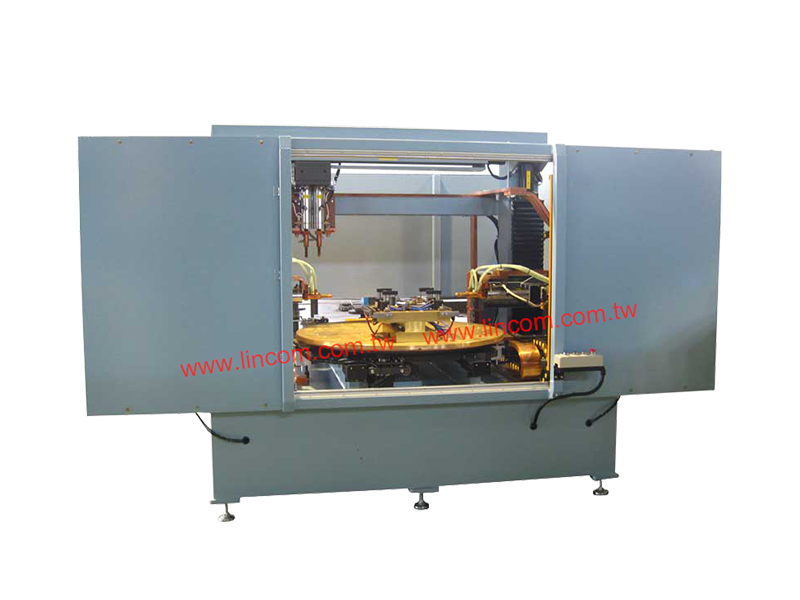

Rotary Spot Welder,
With 7 Axle,6 Cylinder

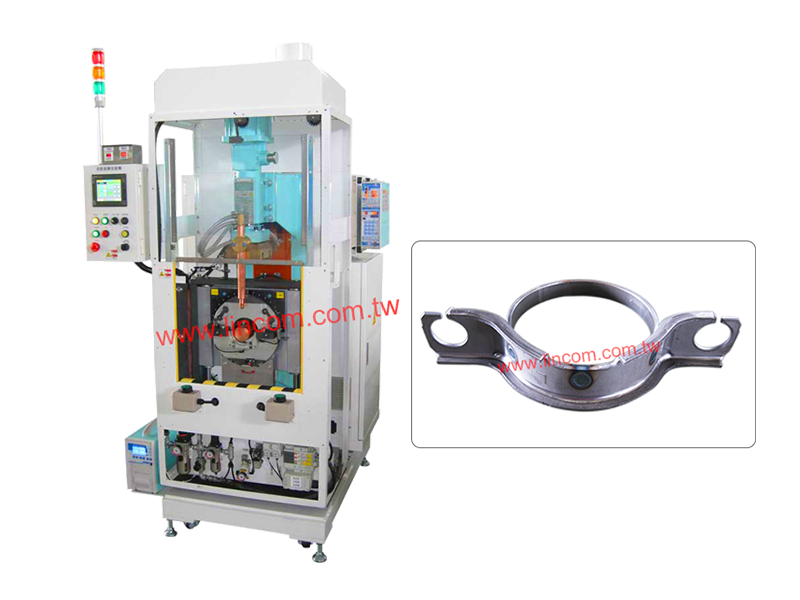

Auto Spot Welder with Servo Swivel Position
| ※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |
