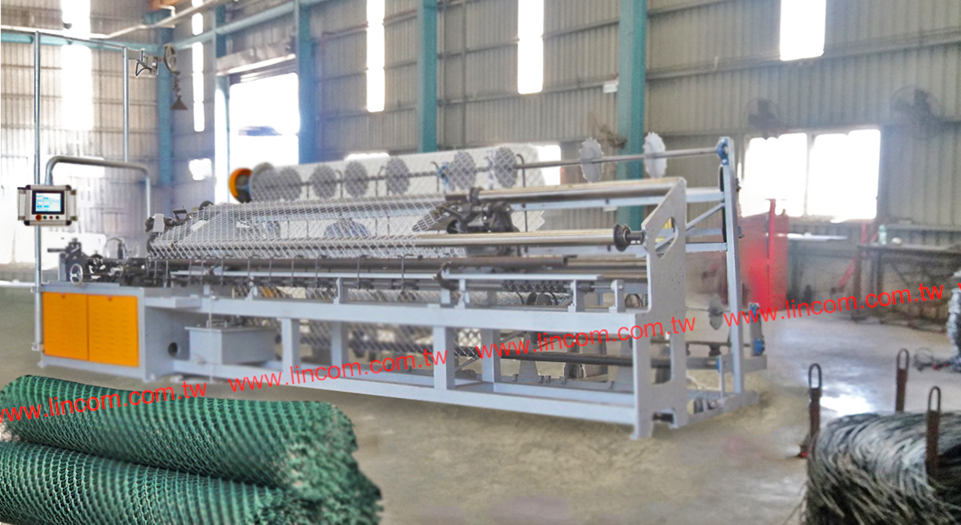

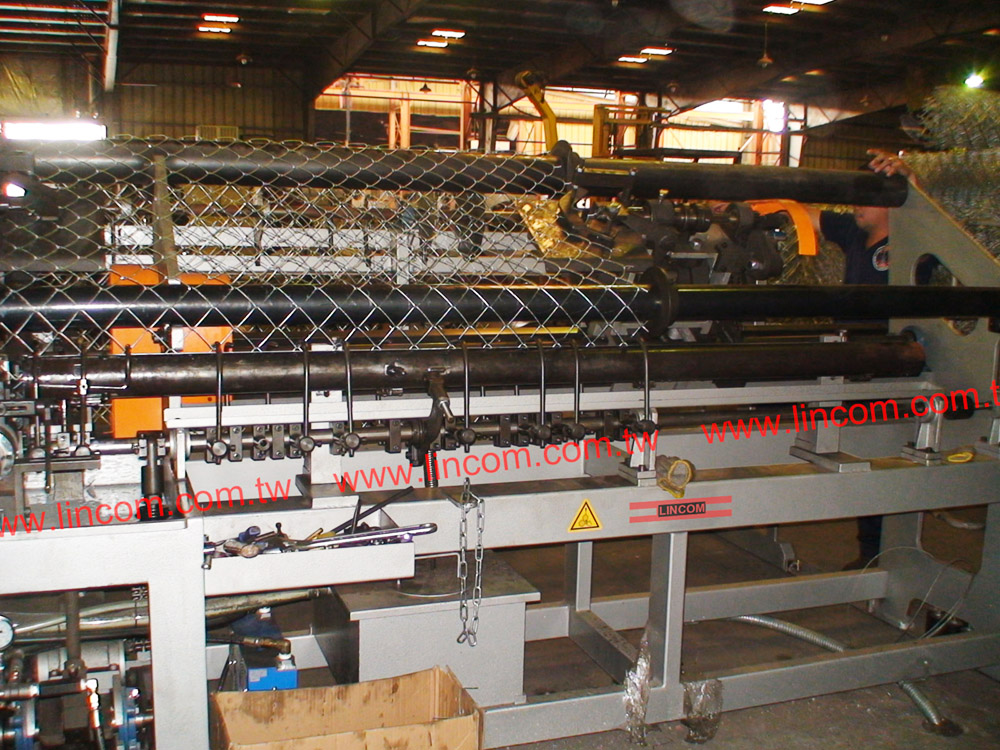

HIGH SPEED CHAIN LINK FENCE MACHINE
HIGH SPEED CHAIN LINK FENCING MACHINE
* Material: Galvanized, PVC Coating & Stainless Steel Wire
* Wire Dia.: 2 - 5 mm
* Mesh Size: 25 - 89 mm
* Fence Height: 3M, 4M & 6M



※Remarks: For details please contact us.
HIGH SPEED CIRCULAR SAW MACHINE

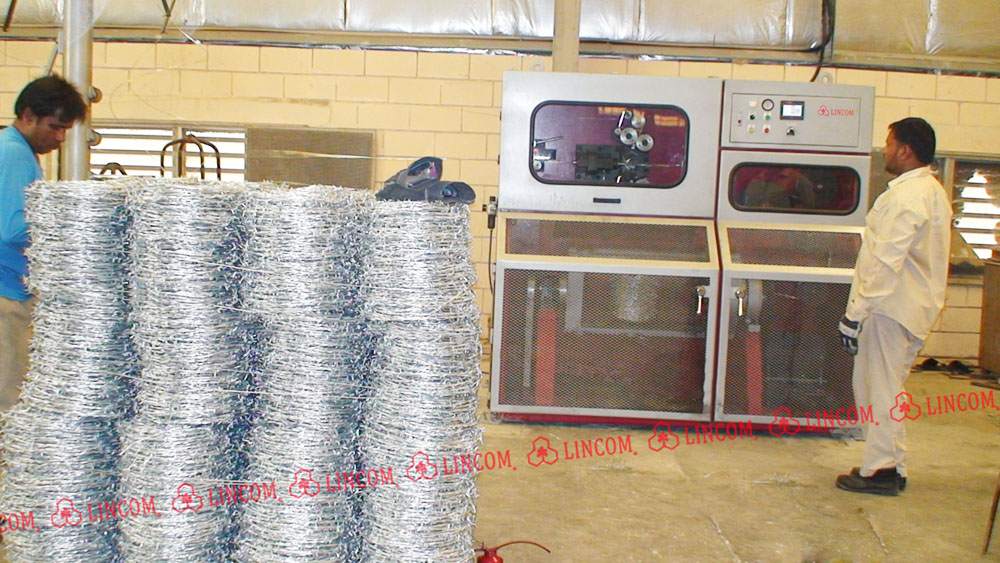

* Material: Galvanized Steel
* Wire Dia. Range: 1.5 - 2.6 mm
* Barb Pitch: 3" - 5" (interval every 1/2")
* Speed: 360 rpm (2.0 mm x 4" pitch, 140 kg/hr)
* PLC Control with Digital Counter
Contents:Wire Payoff With Guiding Arm, Wire Stand, Recoiling Spool.



※Remarks: For details please contact us.

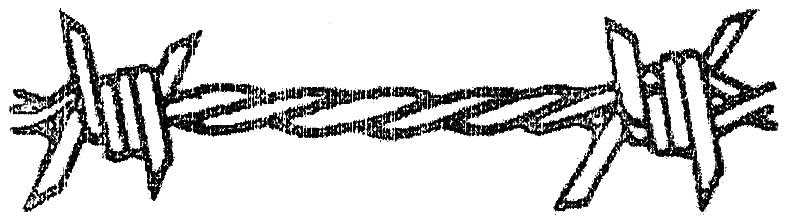

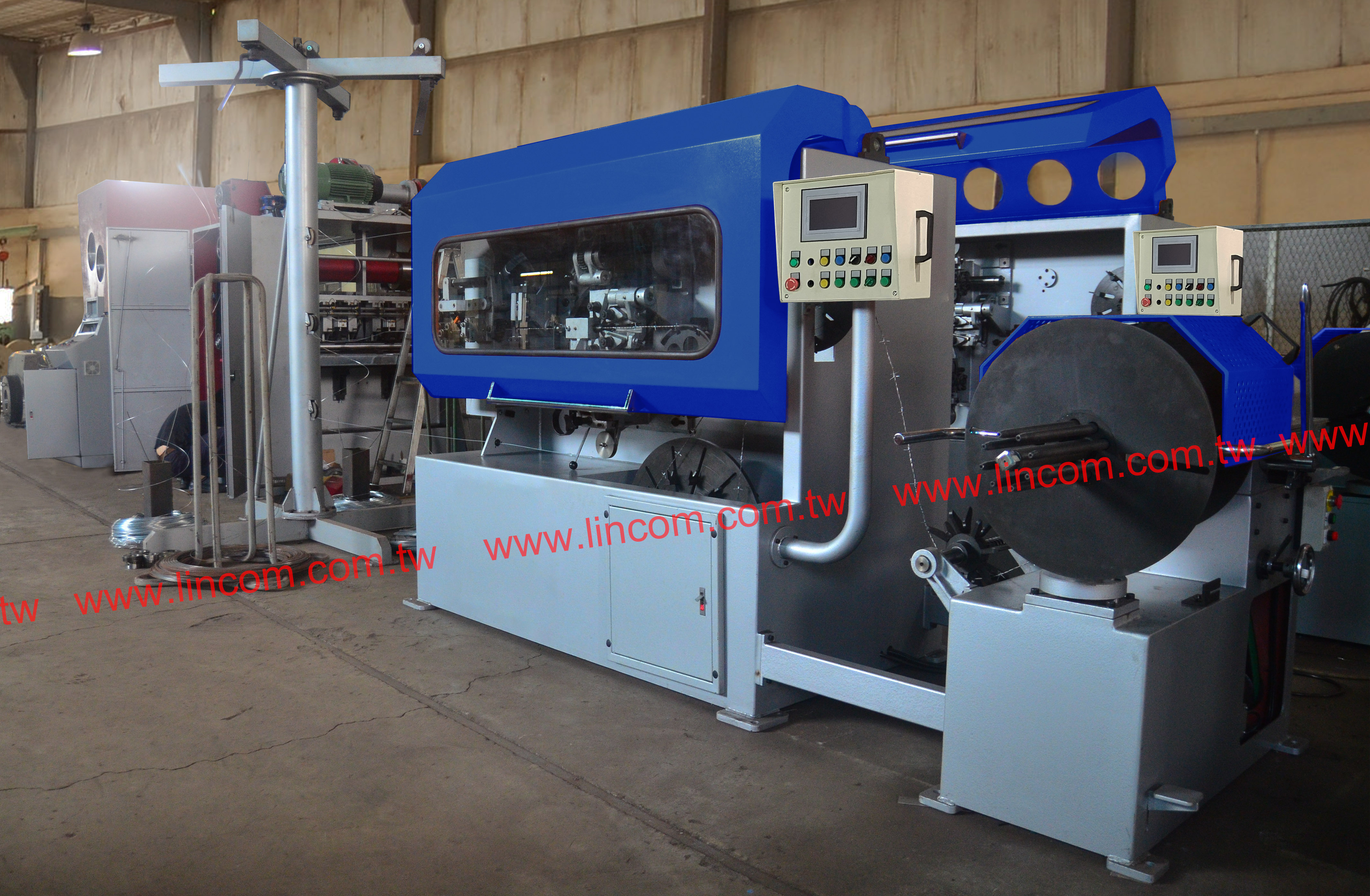

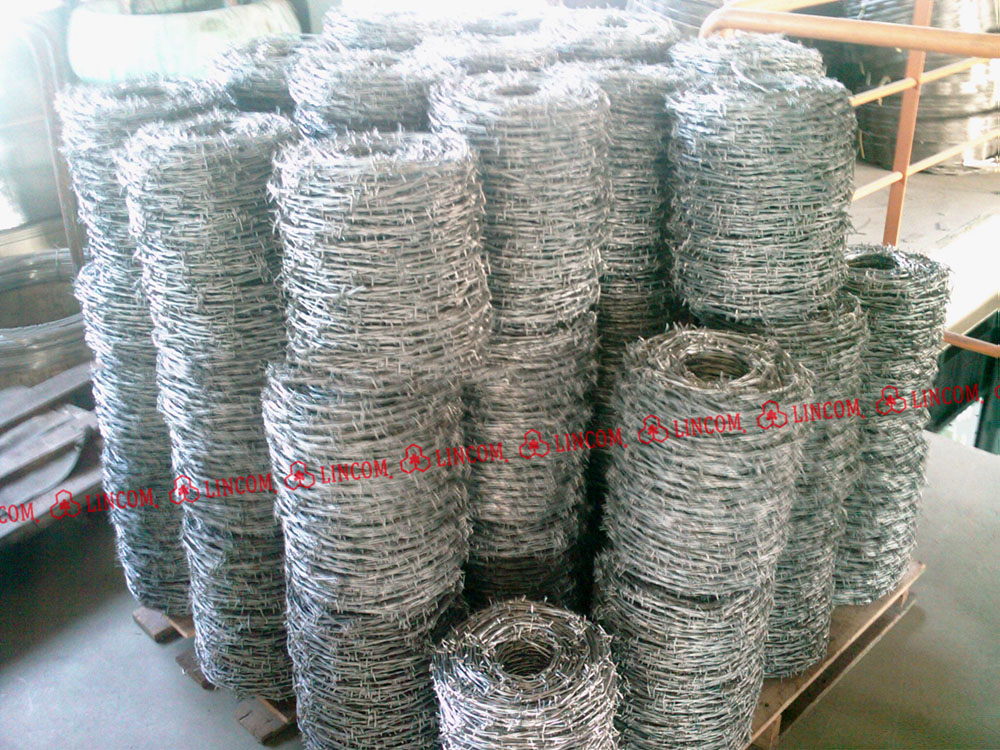

This reversed twisted barbed wire machine is for reverse twisted type barbed wire products of galvanized wire or stainless steel. Barb pitches and sizes can be adjusted to meet requirement.
Specifications:* Max. Speed: 300rpm (Pitch: 3")
* Materials: Galvanized Wire/ High Tensile G.I. Wire
* Line Wire Dia. Range: 1.6-2.5mm
* Barbed Wire: 1.4-2.0mm
* Barbed Pitch: 3", 3.5", 4", 5", 6"
* Recoiling Weight: 30kgs
※Remarks: For details please contact us.

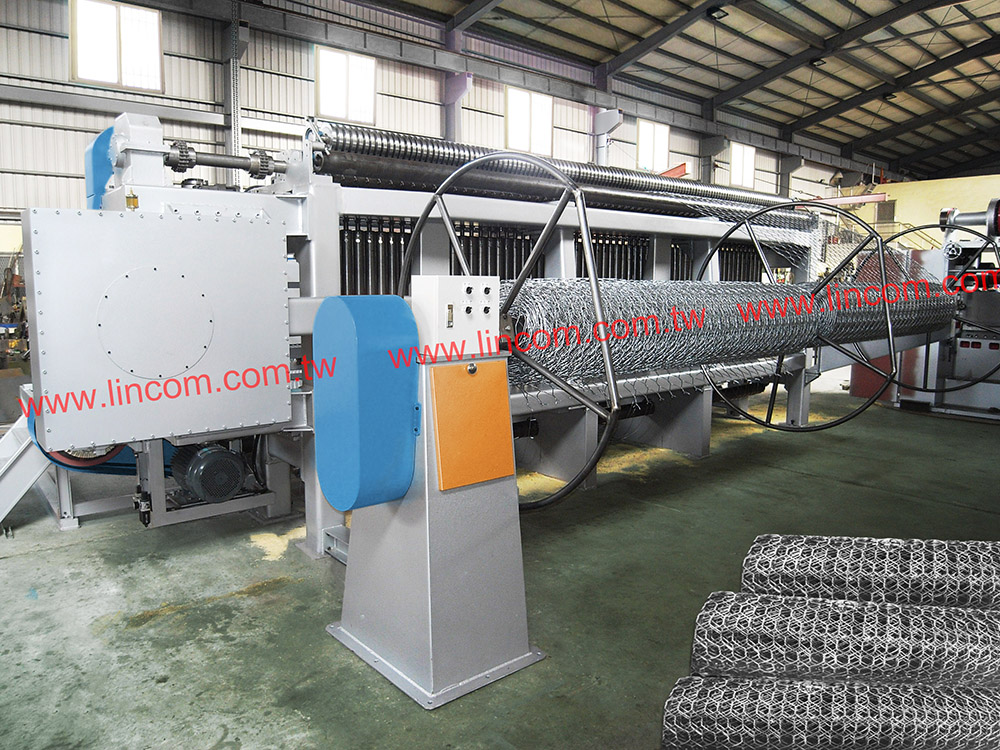

This Gabion Wire Netting Machine webs wire into diamond hexagonal-shaped chainlink net, which is an economy & close mesh option for customers. Gabion Wire Net has been used for more than a century worldwidely from glaciated to drought desert areas due to its features of: flexibility and expandability of adapting to different structure without damaging original basis, accumulative strength by additional diaphragms and tension ties, easy handling, assembling & repairing.
* Net Width: 12 feet
* Mesh Size: 60 x 80, 80 x 100, 100 x 120 mm
* Wire Dia.: G.I. 2.0, 2.2, 2.4, 2.7, 3.0 mm/ PVC Coated G.I. 1.8(2.6), 2.0(3.0), 2.3(3.2), 2.5(3.5) mm
※Remarks: For details please contact us.

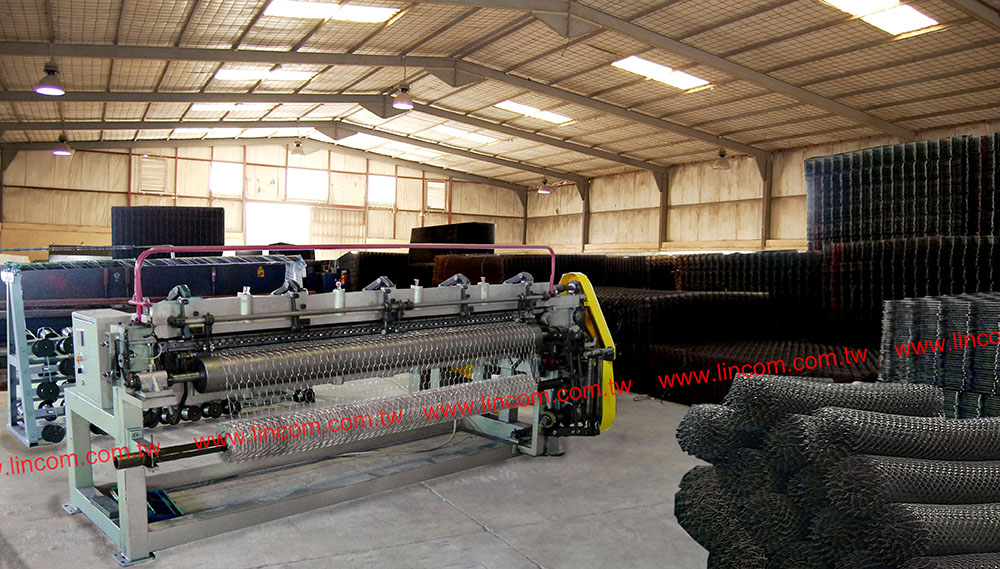

This machine is a revised version of our Standard Hexagonal Wire Netting Machine. Netted wire is supplied from spooled bobbins and spiraled coils on spiral rods. Vertical & horizontal tensile strength is increased by two twisting joints in all section that makes a fine finishing. Equipped automatic stop device is for avoiding breakdowns caused by broken wires and to increase product quality production capacity. The machine can make 2M width or two rolls of 1M width netting simultaneously.We have Spiral Coiling Machines & Bobbin Winding Machines as auxiliary for Hexagonal Wire Netting & Universal Wire Weaving Looms.
Specifications:* Max. Speed: 100spm
* Twist Type: Reverse Twist
* Wire Dia. Range: 0.5 - 0.6 mm (or as requested)
* Material: Annealed Steel Wire/ G.I. Wire
* Mesh Size: 1" (25mm or as requested)
* Working Width: 1M/ 2M/ 3M
* Length Of Roll: Max. 100ft/Roll(*)
* Large Compact Type Recoiler Optional.
※Remarks: For details please contact us.

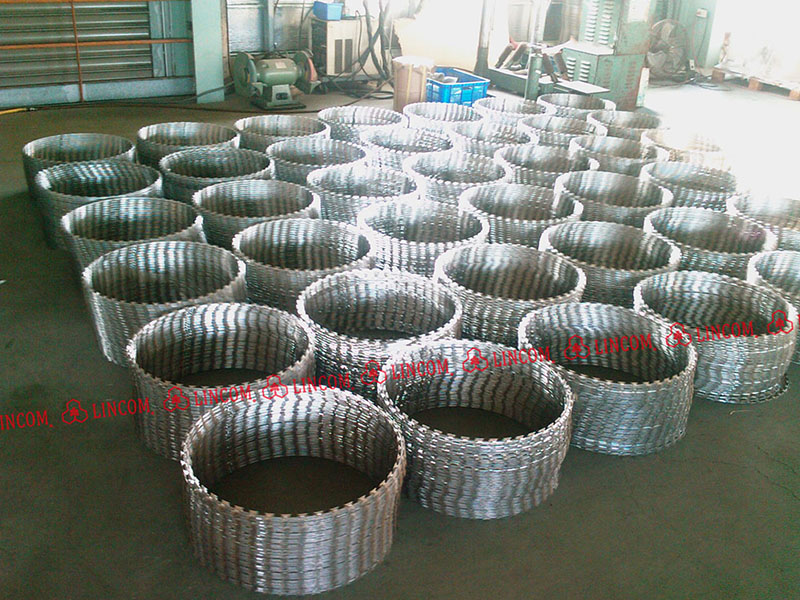

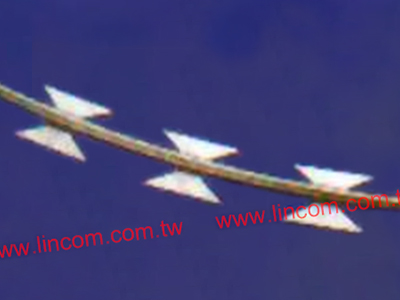

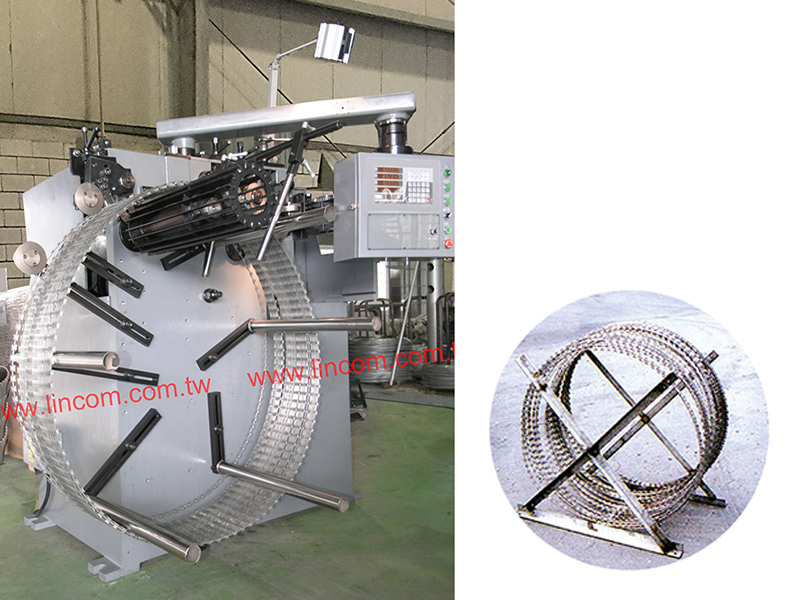

* Razor Wire Diameter: 450, 700, 960, 1250 mm
* Material Specification: Stainless Steel Wire 2.5 mm & Galvanized Wire 0.8 mm
* Production Speed: 70 M/min
* Razor Blade Punching Station: Punching razor blade from strip steel coil.

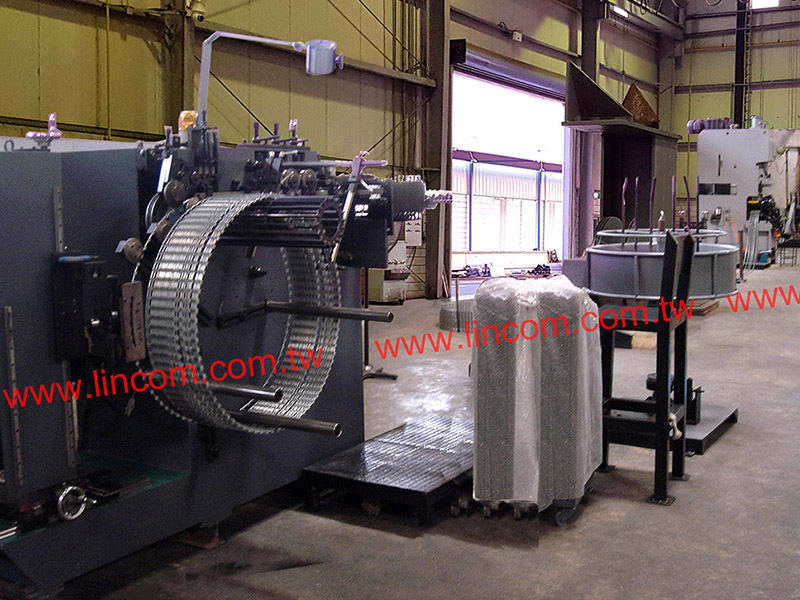

* Concertina Razor Blade Profiling Station Manufacturing the Concertina Razor Tape in rolls with required loops number and diameter. With continuously profiling without clipping & auto-counting as per required loop numbers feature.




※Remarks: For details please contact us.

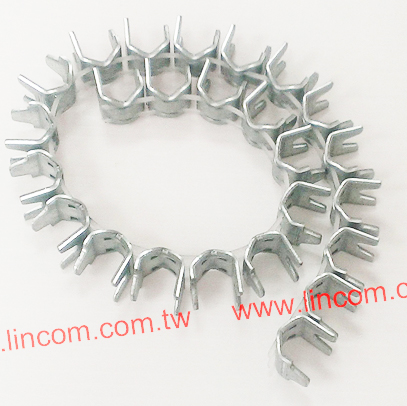

CONCERTINA RAZOR BARBED WIRE CLIP MAKING EQUIPMENT
* Size: O.D. 59.90 - 217.30 mm
Contents:3-In-1 Leveling Machine, Straight Side Air Clutch, Cross-Shaft Power Press & Progressing Stamping Die 1 set.
※Remark: For details please contact us.

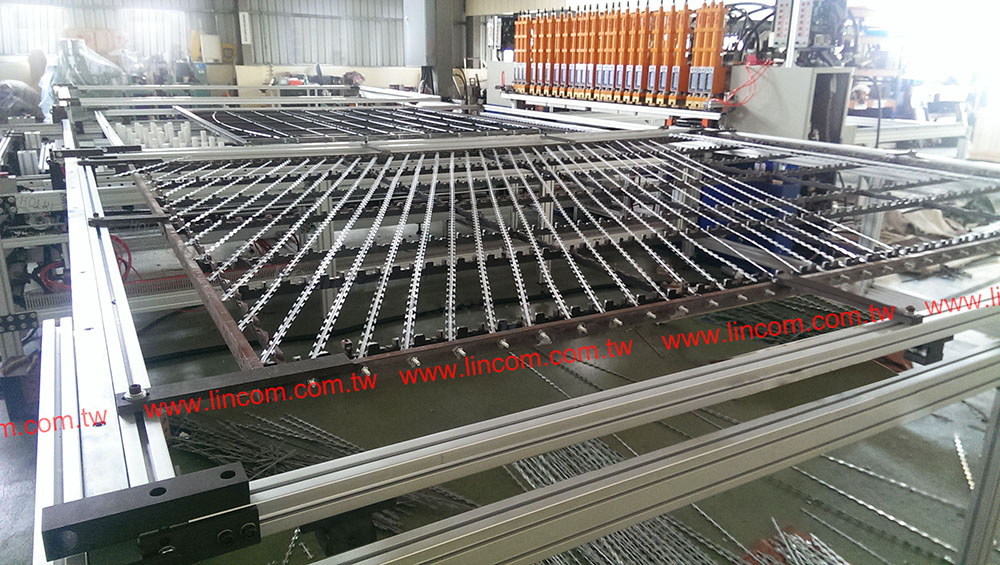

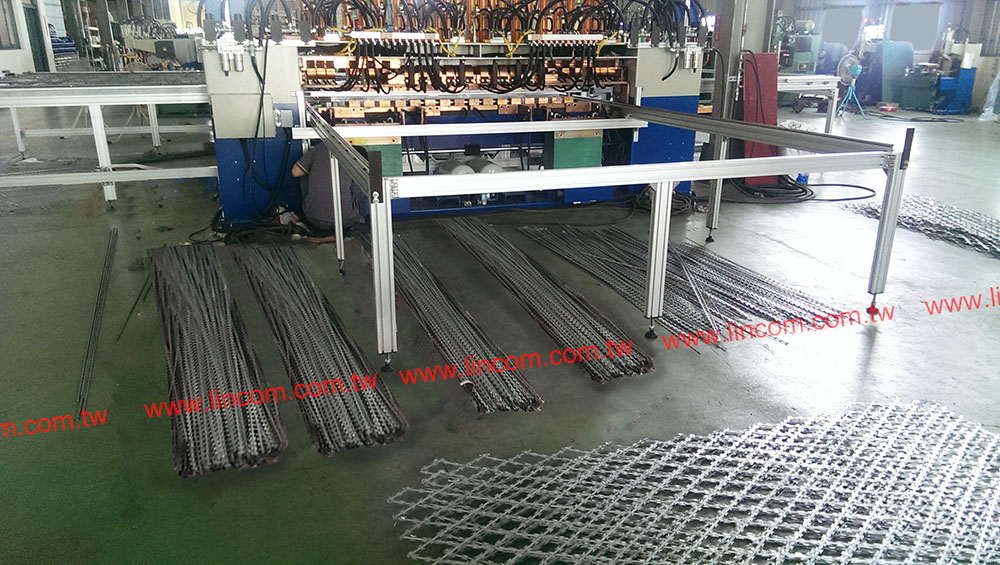

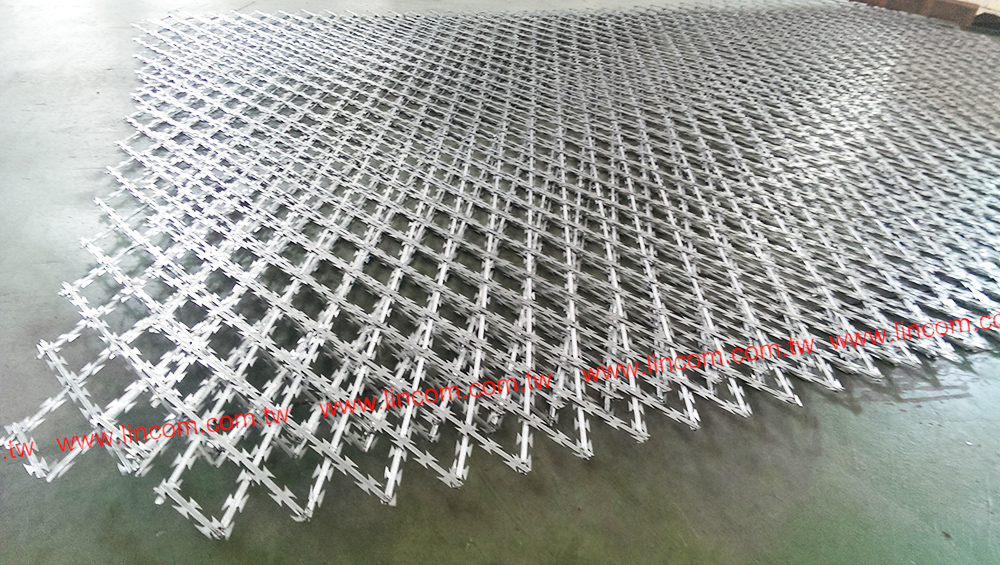

* Material: Galvanized Steel
* Thickness: Core Wire 2.5 mm, Sheet Strip 0.5 mm

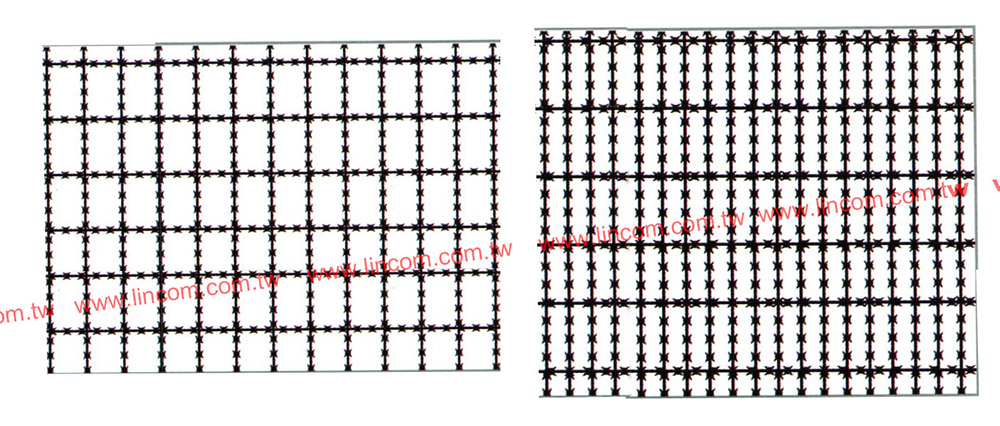

* Mesh Size: 50 x 150 mm, 75 x 150 mm, 100 x 150 mm




※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |

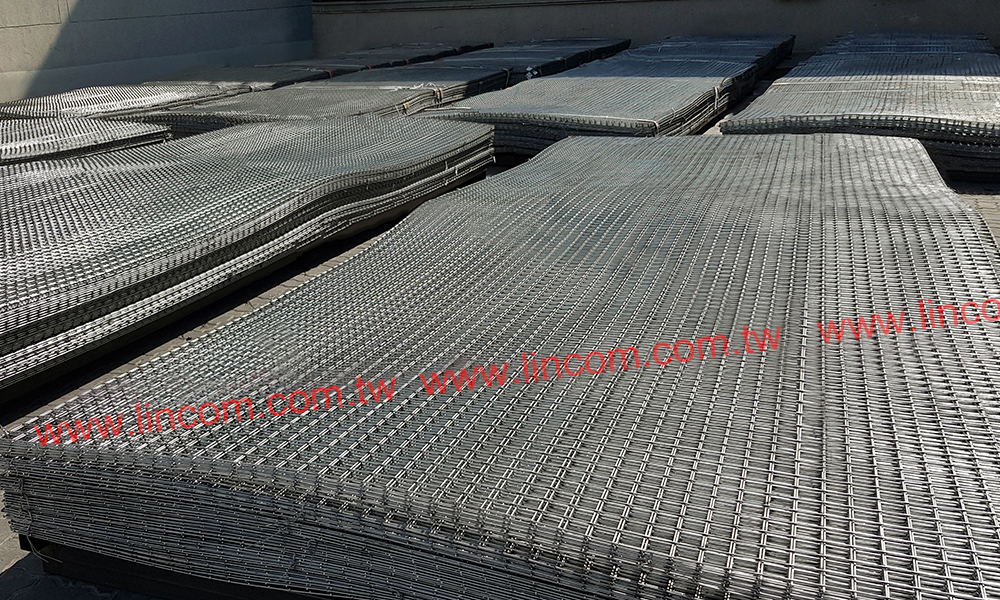

WELDED FENCE MACHINE, Pre Auto Welding
* Line wire/ cross wires pre-cut auto feeding with the high production rate.
* Quick change-over, easy and quick to reset different sizes of wire mesh.
* Future looking verstility by modular system to incorporate options for future requirement.
* Single line wire hopper, drops wires in guiding rails automatically, then pushes wires to welding device, pull the mesh by grippers controlled by servo motor.
* The grippers of the V-forming device clamp the mesh to process V forming, controlled by servo motor pulling step by step as well.
* Unloading welded mesh from output device.

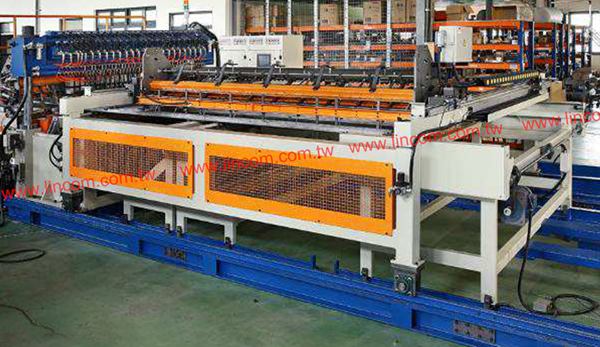

Line Wire Feeding Device

Welding Specification:
* Wire Diameter: 4.0 - 5.0 mm
* Mesh Width Production Range: 1000 - 3100 mm
* Mesh Length Production Range: 1500 - 3000 mm
* Cross Wire Pitch: 50 mm
* Cross Wire Overhang: 50 mm
* Line Wire Pitch: 50, 100 mm
* Max. Number of Line Wire Per Mesh: 61 bar

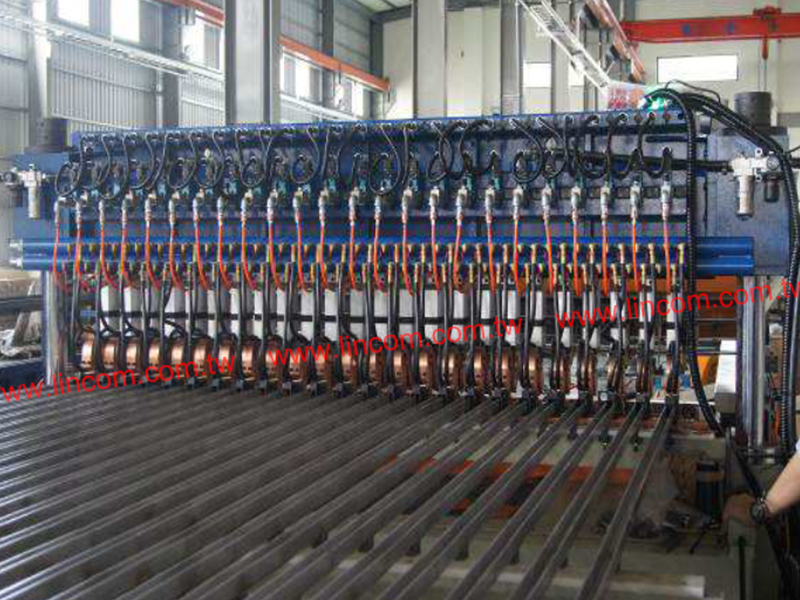

Mesh Welding Machine

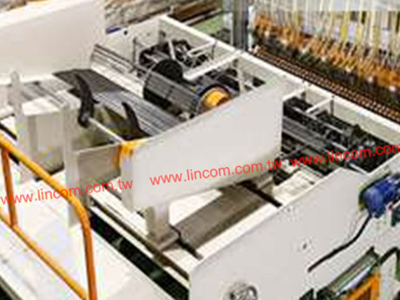

Cross Wire Feeding Device





※Customers specific requirement are Welcome!

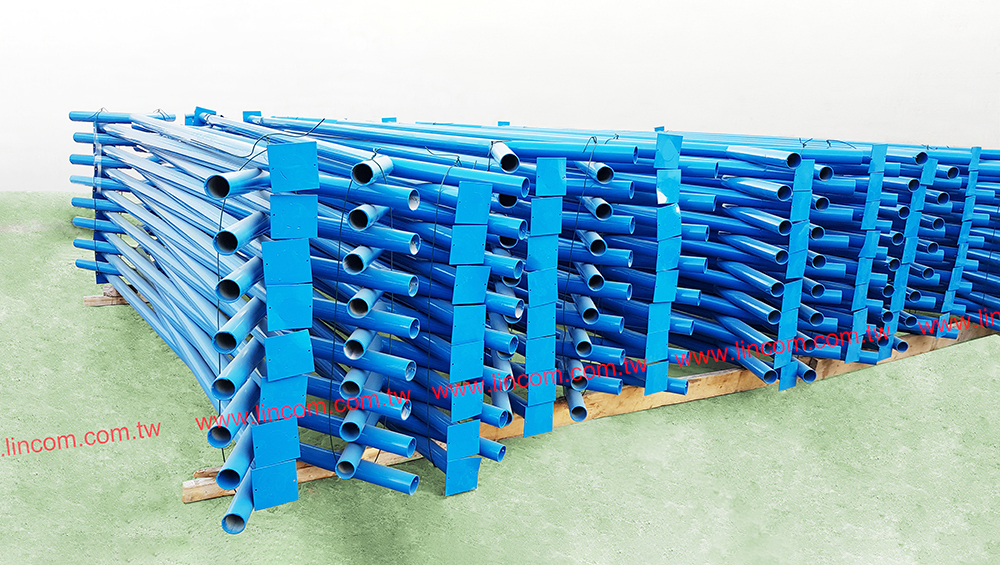

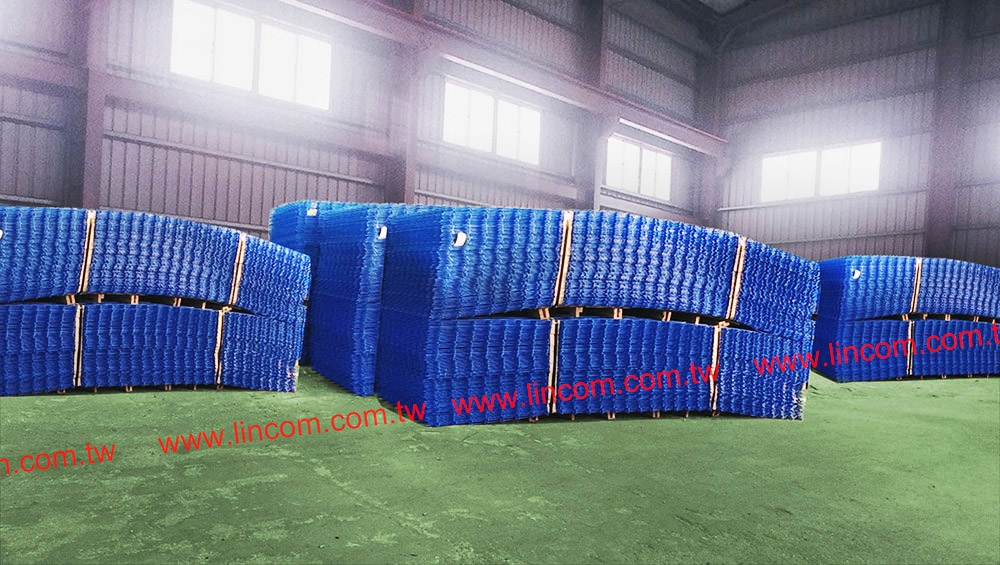

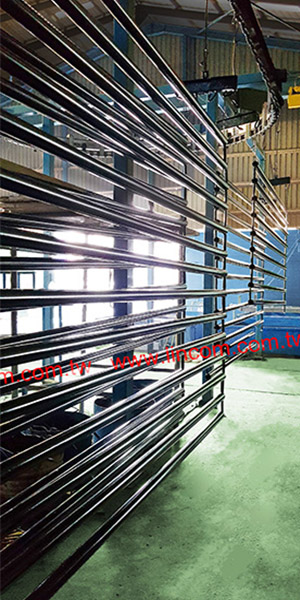

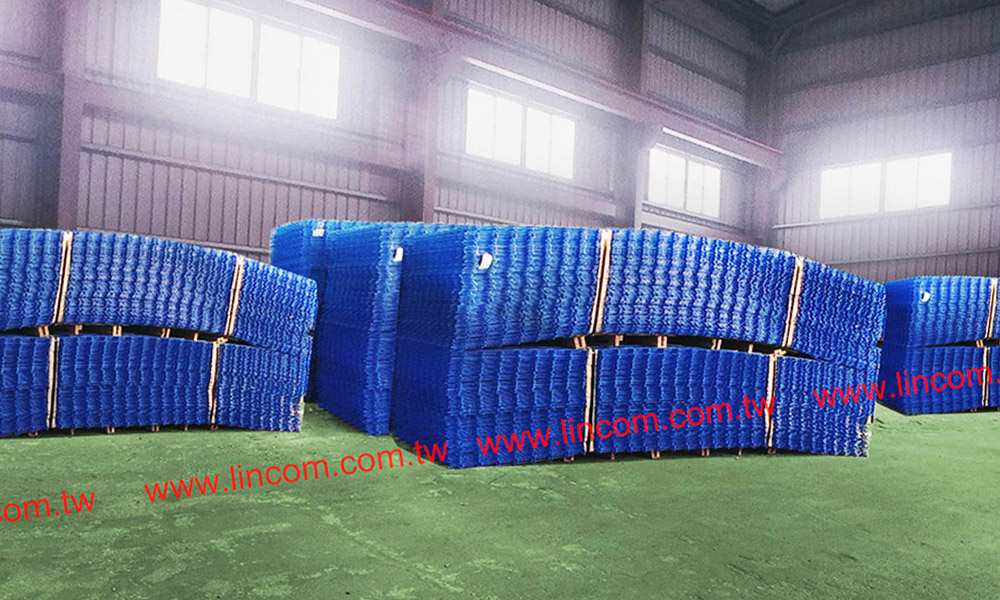

WIRE MESH & WELDED FENCE COATING PLANT MACHINE

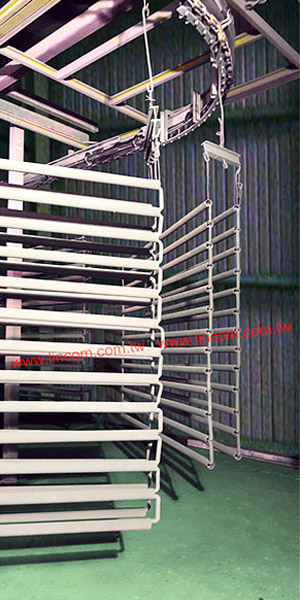

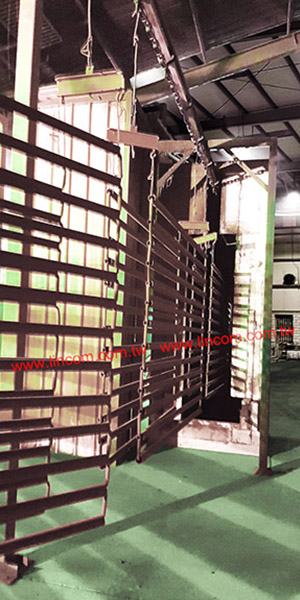

POWDER COATING LINE FOR WIRE MESH & WELDED FENCE
* Raw Material: Ribbed Wire
* Max. Size: L 6 x W 2.7 M
* Max. Weight: 200 kg/mesh
* Conveyor Speed: 1.5 M/min adjustable

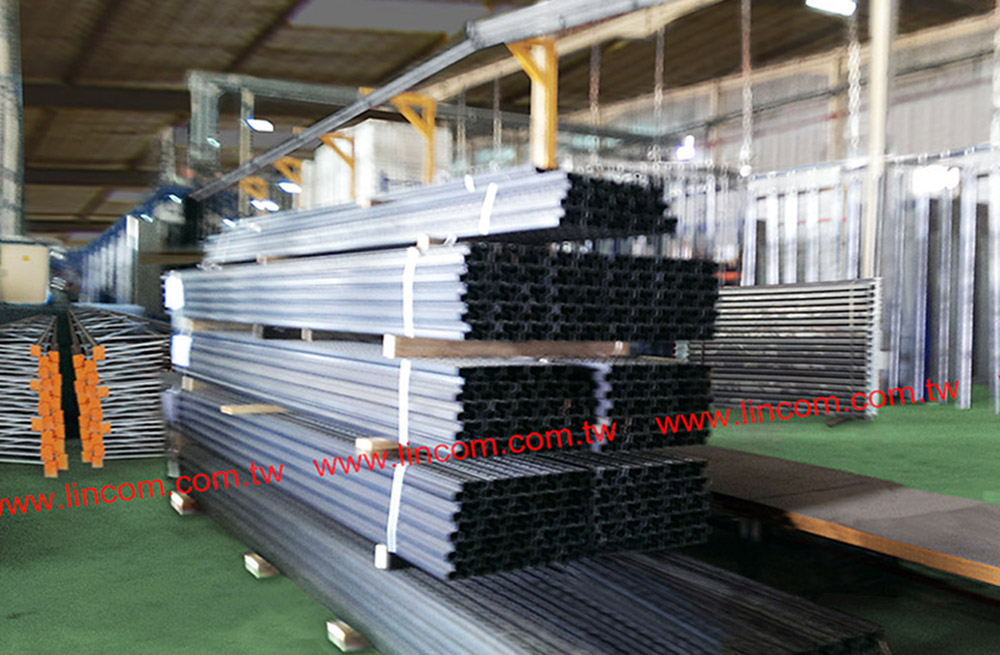

Contents:Auto Spray Type Pretreatment Equipment, Dry Oven Equipment, Manual Powder Spray Room, Manual Elctrostatic Spray Gun, Bake Oven Equipment, Run-out Conveyor.




Auto Spray Pre-treatment Equipment:
* Process: Loading → Degreasing → Water Rinsing → Surface Condition Phosphating → Water Rinsing → Water Rinsing
Dry Oven Equipment:
* Type: Gas Type (PID) control
* Burner: US Eclipse Burner & attach Honeywell Ratio Motor with Pressure Switch. US FM Standard second pipe piping.
* Safety Device: Circulation blower auto running confirm, burner auto running confirm, gas leakage confirm & auto emergency cut-off, main fire sensor checking, low high fire confirm, fire sensor & supervisor system confirm, temperature ratio control, no fire auto cutting off and alarm system.
* Hot Air Circulation System.
Baken Oven Equipment:
* Type: Gas Type (PID) control
* Burner: US Eclipse Burner & attach Honeywell Ratio Motor with Pressure Switch. US FM Standard second pipe piping.
* Safety Device: Circulation blower auto running confirm, burner auto running confirm, gas low high pressure confirm, cut off, main fire sensor checking, low high fire confirm, fire sensor & supervisor system confirm, temperature ratio control, no fire auto cutting off and alarm system.


※Remarks: | 1.For details please contact us. 2.Customers specific requirement are Welcome! |

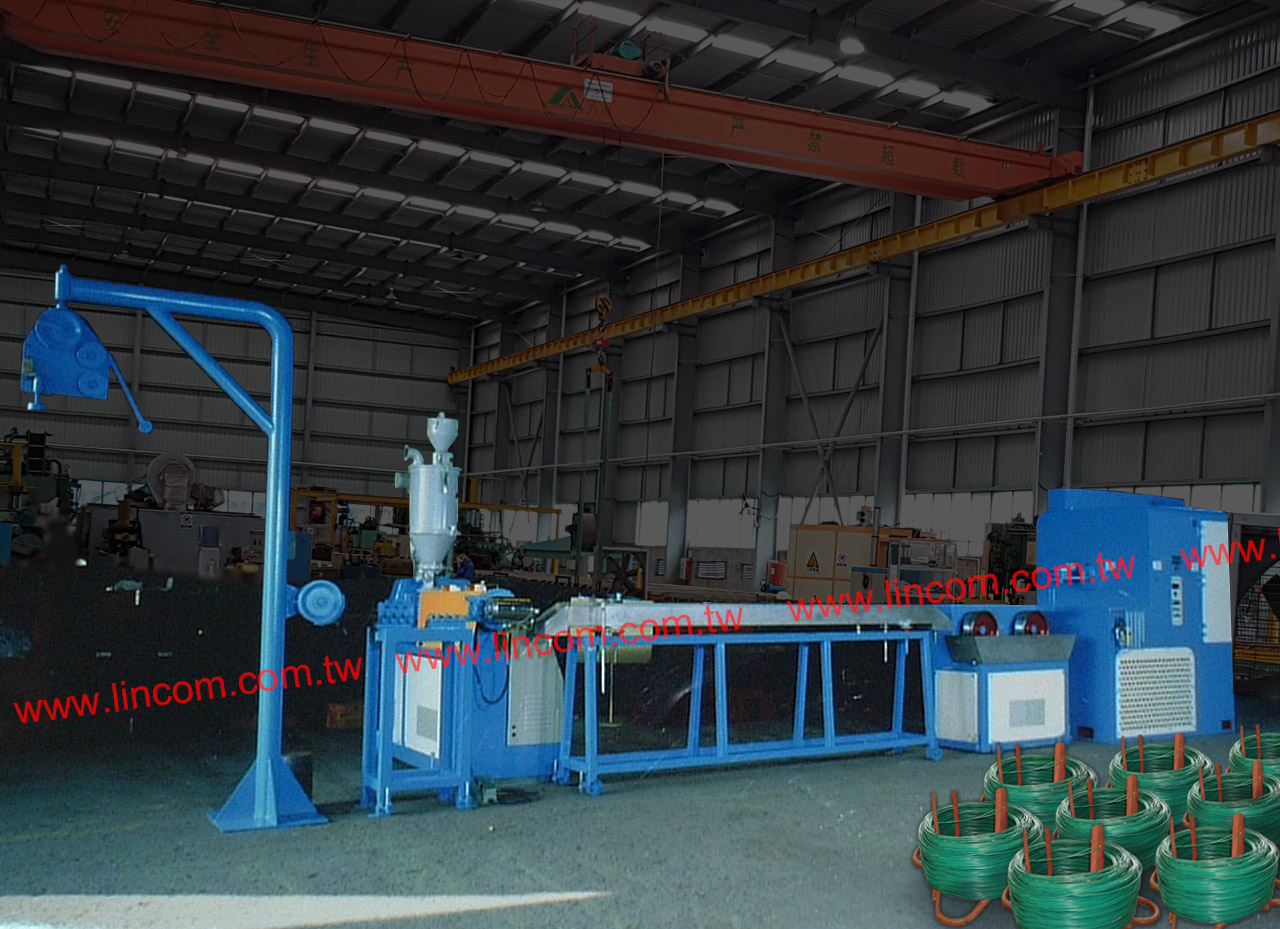

HIGH SPEED WIRE PVC COATING LINE
WIRE PVC COATING LINE
* Raw Wire Material: Low Carbon Steel (ANSI1008 - ANSI1010)
* Plastic Material: LDPE, PVC
1) AC 25HP motor + inverter
2) Wire speed : 0-120 M/MIN
3) Temperature control box 5 point
4) Ventilation 3 sections
5) Inlet wire dia.: 2.8 / 1.8 / 2.1 (mm)
Finished wire dia.: 3.8/ 2.5/ 3.0 (mm)
Stainless steel cooling tank, Freezing machine, Feeding straighten roll, Horizontal / Vertical roll 7*7, Non - stop coiler, Bind wire stand
* 1 pc, Coil wire stand (Pay-off), Plastic Attracting device.
※Customers specific requirement are Welcome!
